Yaw Rate And Acceleration Sensor: Components

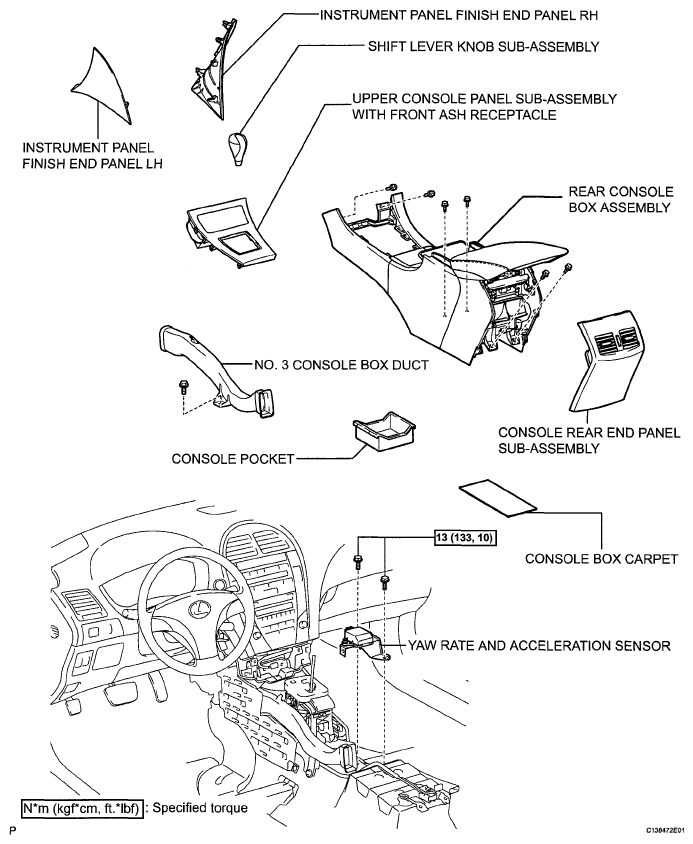

Fig 1: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications
G05250503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
