System Diagram

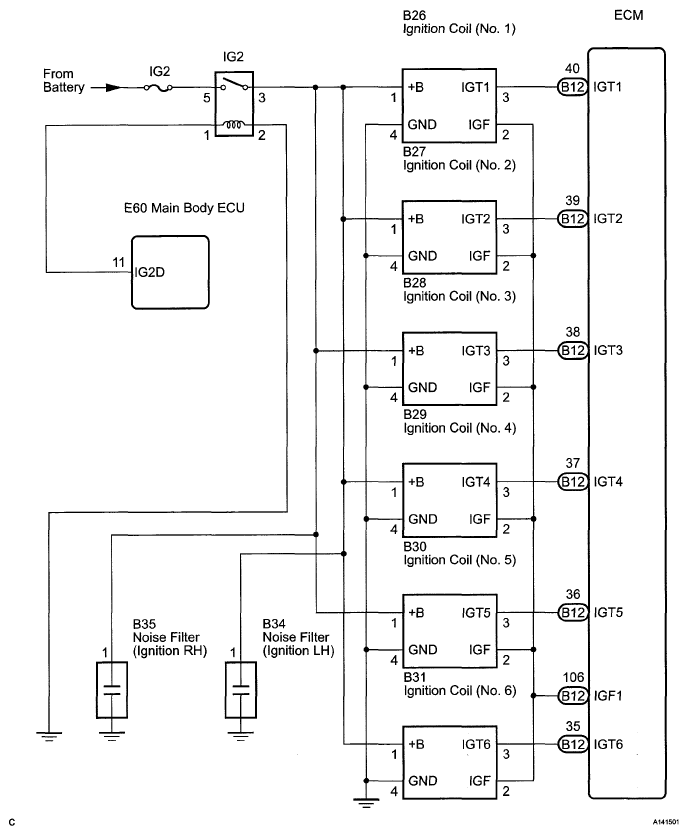

Fig 1: Ignition System Diagram
G05248777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
