System Diagram

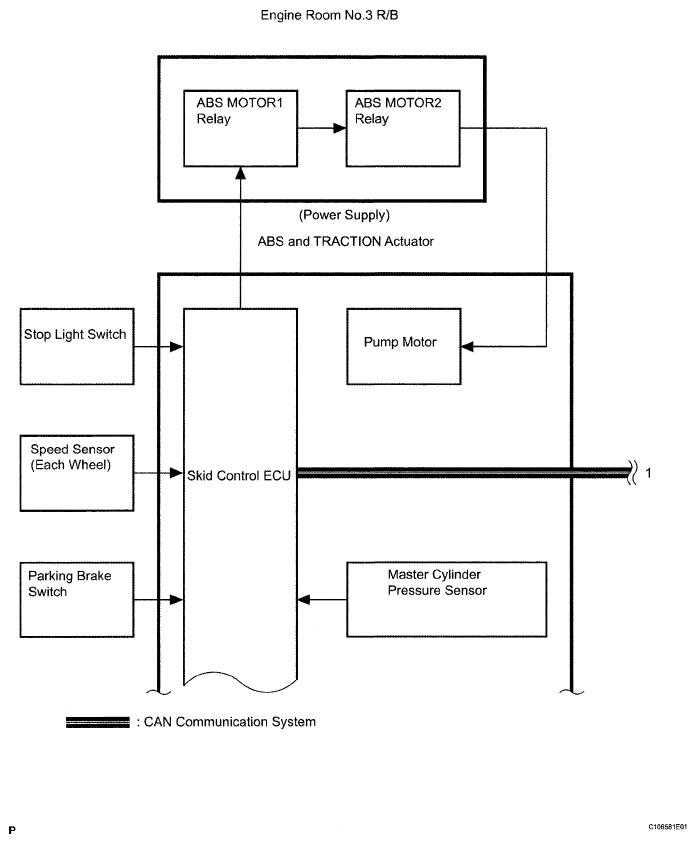

Fig 1: Vehicle Stability Control System - System Diagram (1 Of 4)
G05296863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

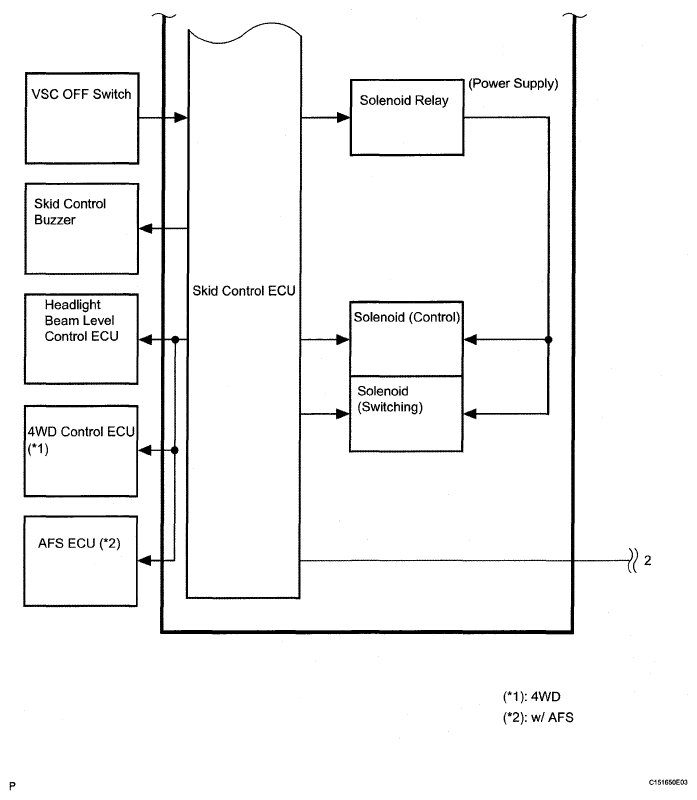

Fig 2: Vehicle Stability Control System - System Diagram (2 Of 4)
G05296864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

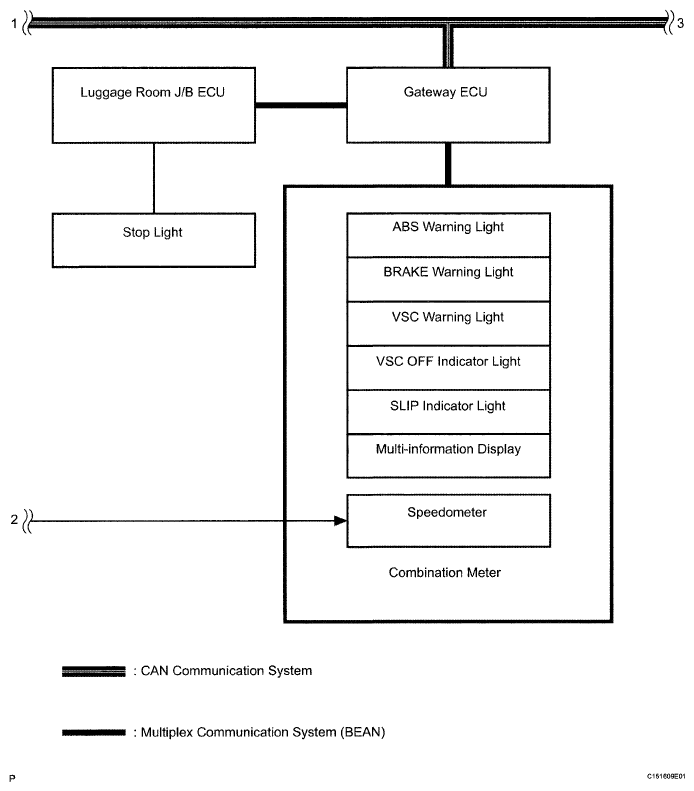

Fig 3: Vehicle Stability Control System - System Diagram (3 Of 4)
G05296865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

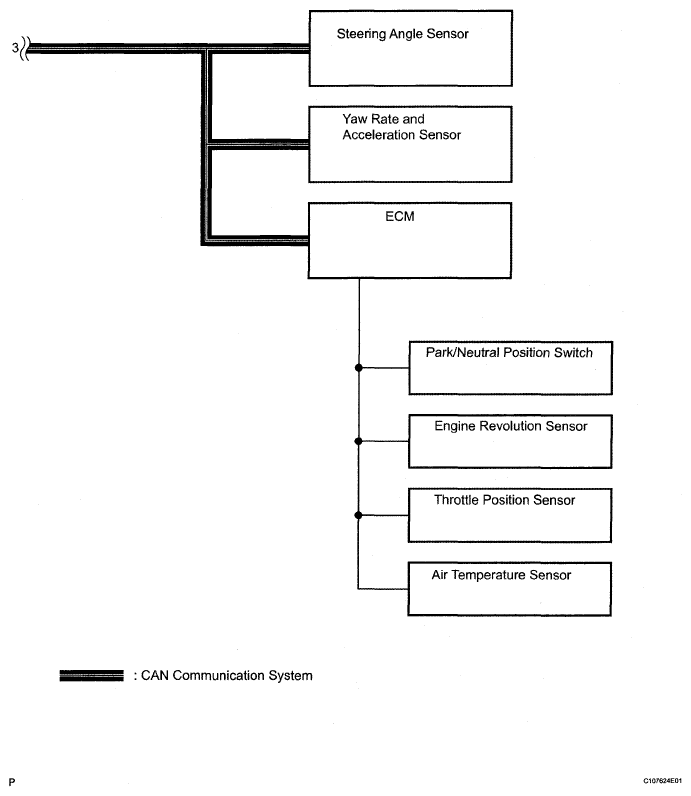

Fig 4: Vehicle Stability Control System - System Diagram (4 Of 4)
G05296866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TRANSMISSION ECU REFERENCE CHART

Transmission ECU (transmitter) Receiving ECU Signals Communication method
ECM Skid control ECU
  • Shift Position Signal
  • Throttle Position Signal
  • Engine Revolution Signal
  • Intake Air Temperature Sensor Signal
 CAN Communication System
Skid Control ECU ECM
  • Wheel Speed Signal
  • VSC Data Signal
 CAN Communication System
Skid Control ECU Gateway ECU
  • ABS Warning Light ON Signal
  • VSC Warning Light ON Signal
  • BRAKE Warning Light ON Signal
  • SLIP Indicator Light ON Signal
  • VSC OFF Indicator Light ON Signal
 CAN Communication System
