Vehicle Stability Control System: Wiring Diagram: Notes

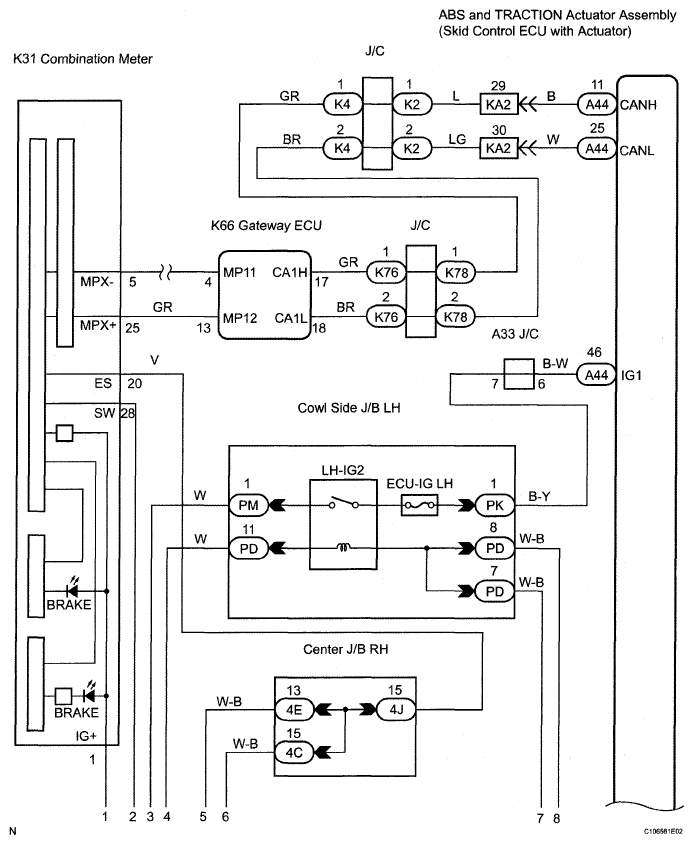

Fig 1: Brake Warning Light - Wiring Diagram (1 Of 2)
G05296960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

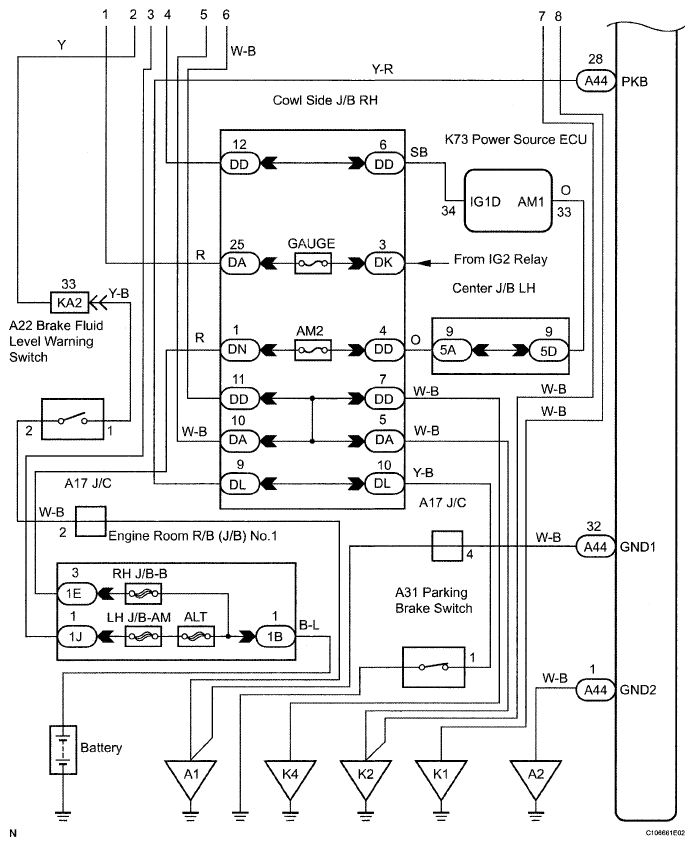

Fig 2: Brake Warning Light - Wiring Diagram (2 Of 2)
G05296961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
