DTC U0131-433 Lost Communication with Power Steering Control Module; DTC U0131-434 Lost Communication with Power Steering Control Module: Wiring Diagram

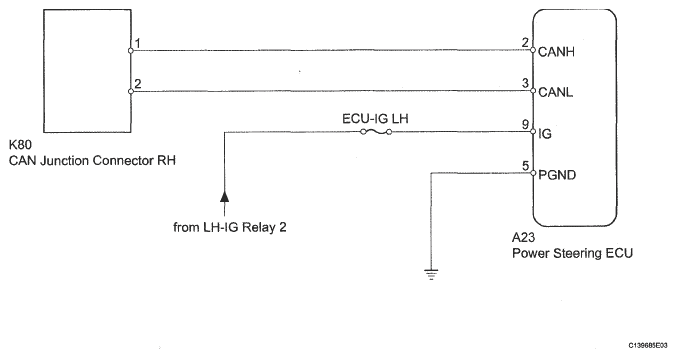

Fig 1: Lost Communication With Power Steering Control Module - Wiring Diagram
G05312373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
