Confirmation Driving Pattern

HINT:

Performing this confirmation pattern will activate the catalyst monitor. This is very useful for verifying the completion of a repair.

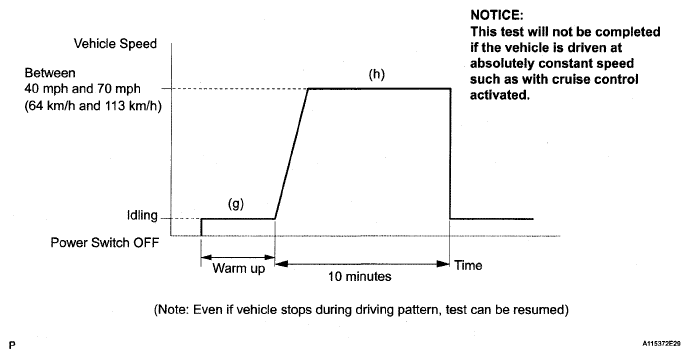

Fig 1: Vehicle Speed Driving Pattern

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Intelligent Tester Display - READINESS TESTS

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the intelligent tester to the DLC3.
2. Turn the power switch ON (IG).
3. Turn the tester ON.
4. Clear DTCs (if set) (see DTC CHECK/CLEAR ).
5. Enter the following menus: DIAGNOSIS / CARB OBD II / READINESS TESTS.
6. Check that CAT EVAL is INCMPL (incomplete).
7. Start the engine and warm it up.
8. Drive the vehicle at between 40 mph and 70 mph (64 km/h and 113 km/h) for at least 10 minutes.
9. Note the state of the Readiness Tests items. Those items will change to COMPL (complete) as CAT EVAL monitor operates.
10. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DTC INFO / PENDING CODES and check if any DTCs (any pending DTCs) are set.

HINT:

If CAT EVAL does not change to COMPL, and any pending DTCs fail to set, extend the driving time.
