DTC P0A1A-200 Generator Control Module; DTC P0A1A-792 Generator Control Module; DTC P0A1A-793 Generator Control Module: Wiring Diagram

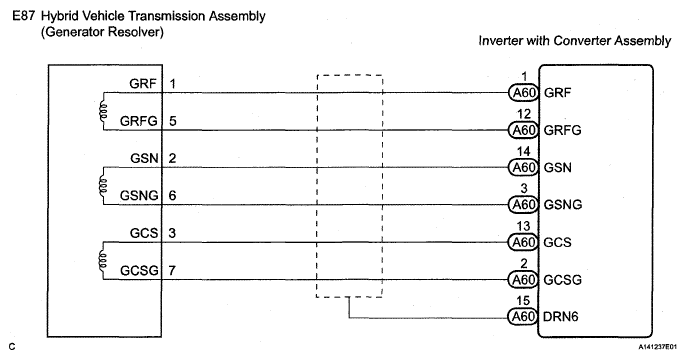

Fig 1: Generator Control Module - Wiring Diagram
G05303969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
