Distance Control ECU Communication Stop Mode: Wiring Diagram

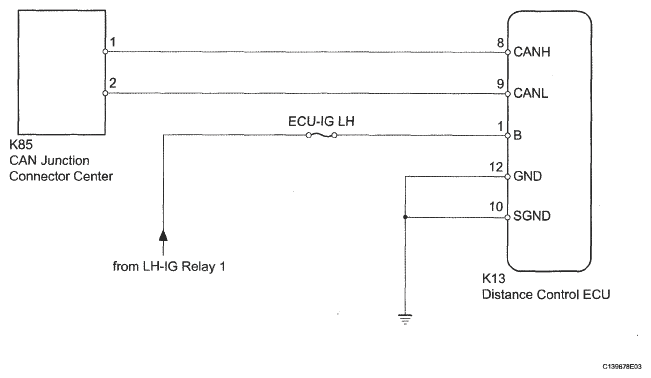

Fig 1: Distance Control ECU Communication Stop Mode - Wiring Diagram
G05312453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
