Display Signal Circuit Between Multi-Display and Radio Receiver

Display Signal Circuit between Multi-display and Radio Receiver

DESCRIPTION
This is the DVD display signal circuit from the radio receiver to the multi-display.

Wiring Diagram:

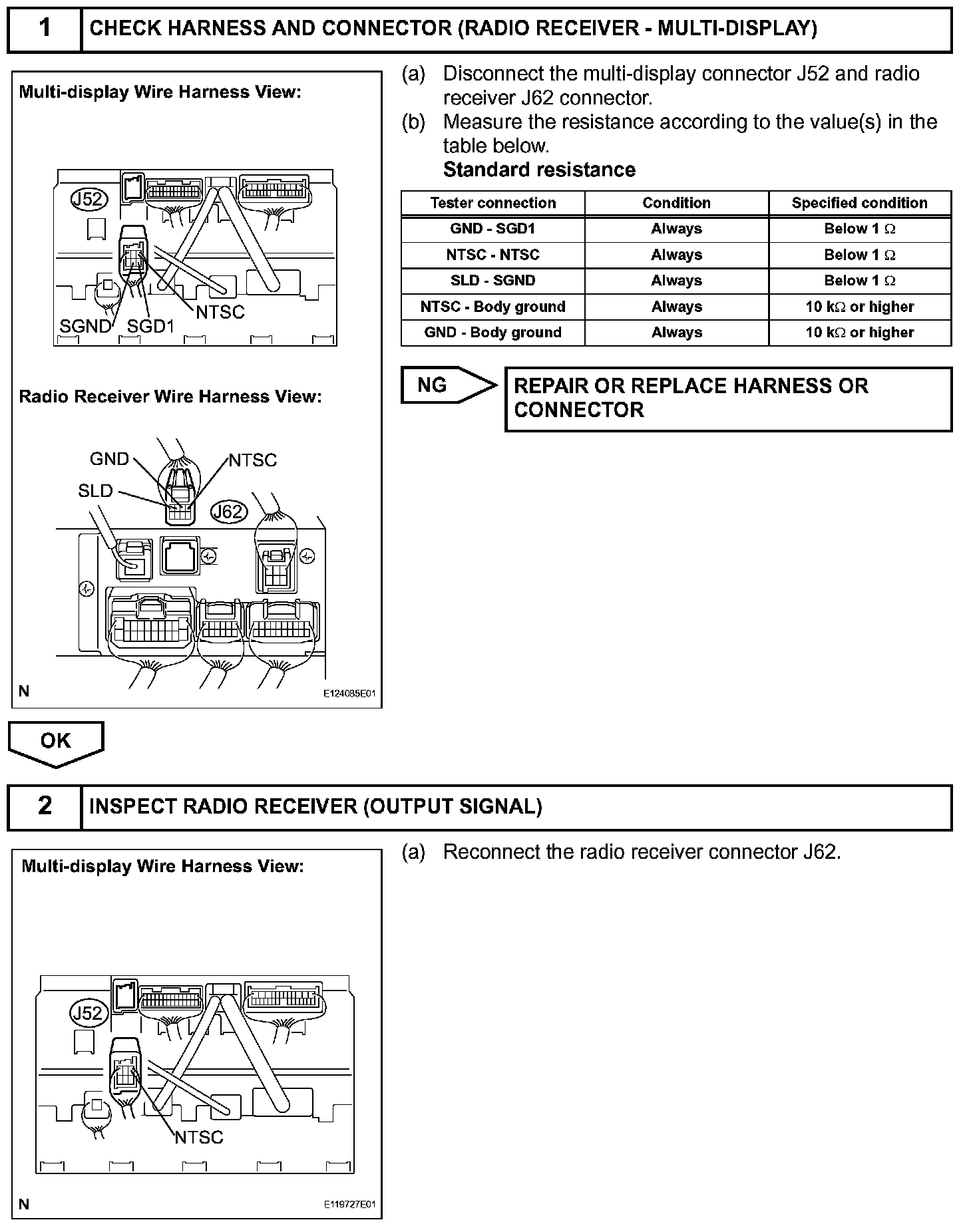

Step 1-2:

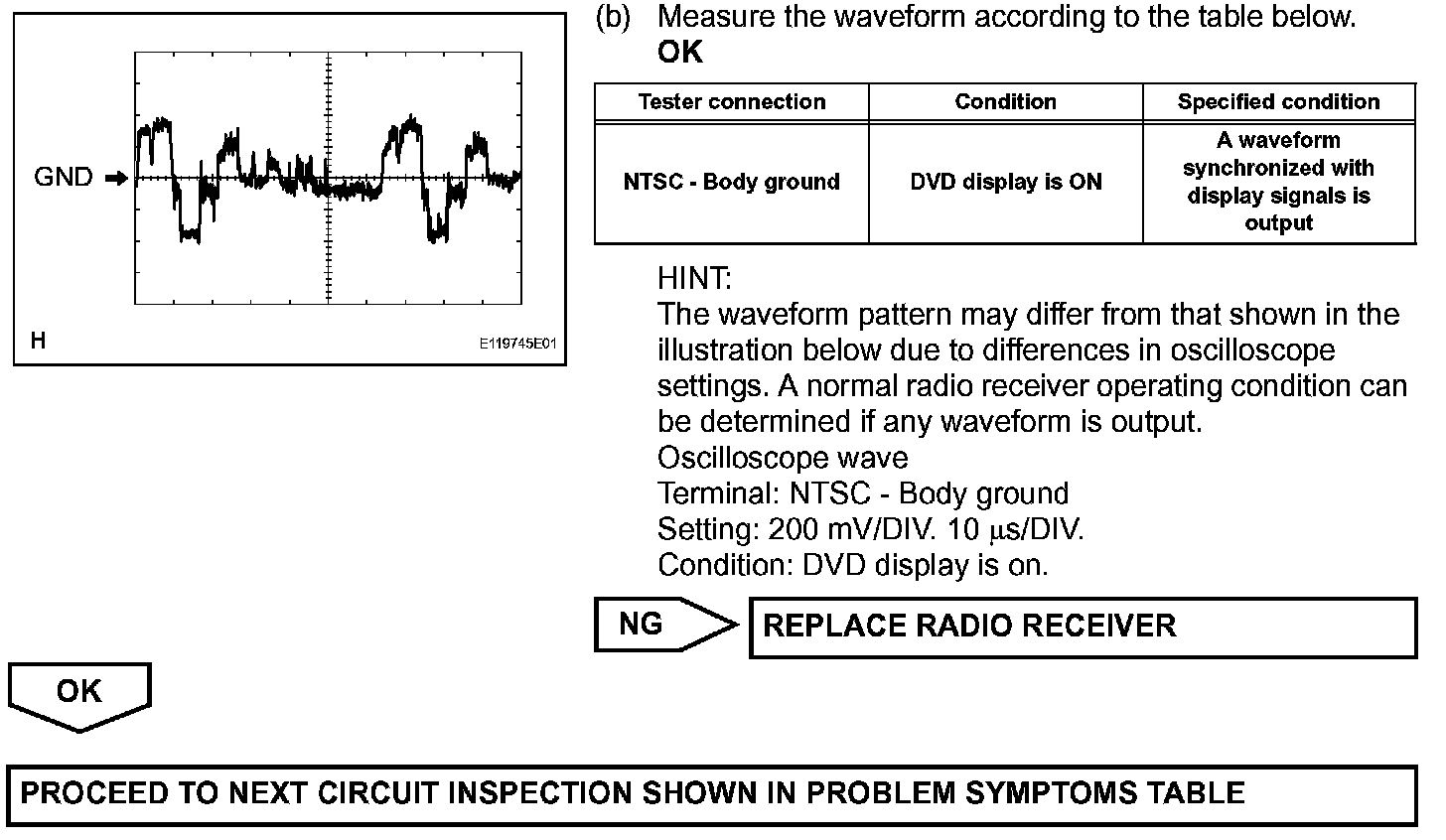

Step 2 (Continued):

INSPECTION PROCEDURE
