Multi-Display Power Source Circuit

Multi-display Power Source Circuit

DESCRIPTION
This is the power source circuit to operate the multi-display.

Wiring Diagram:

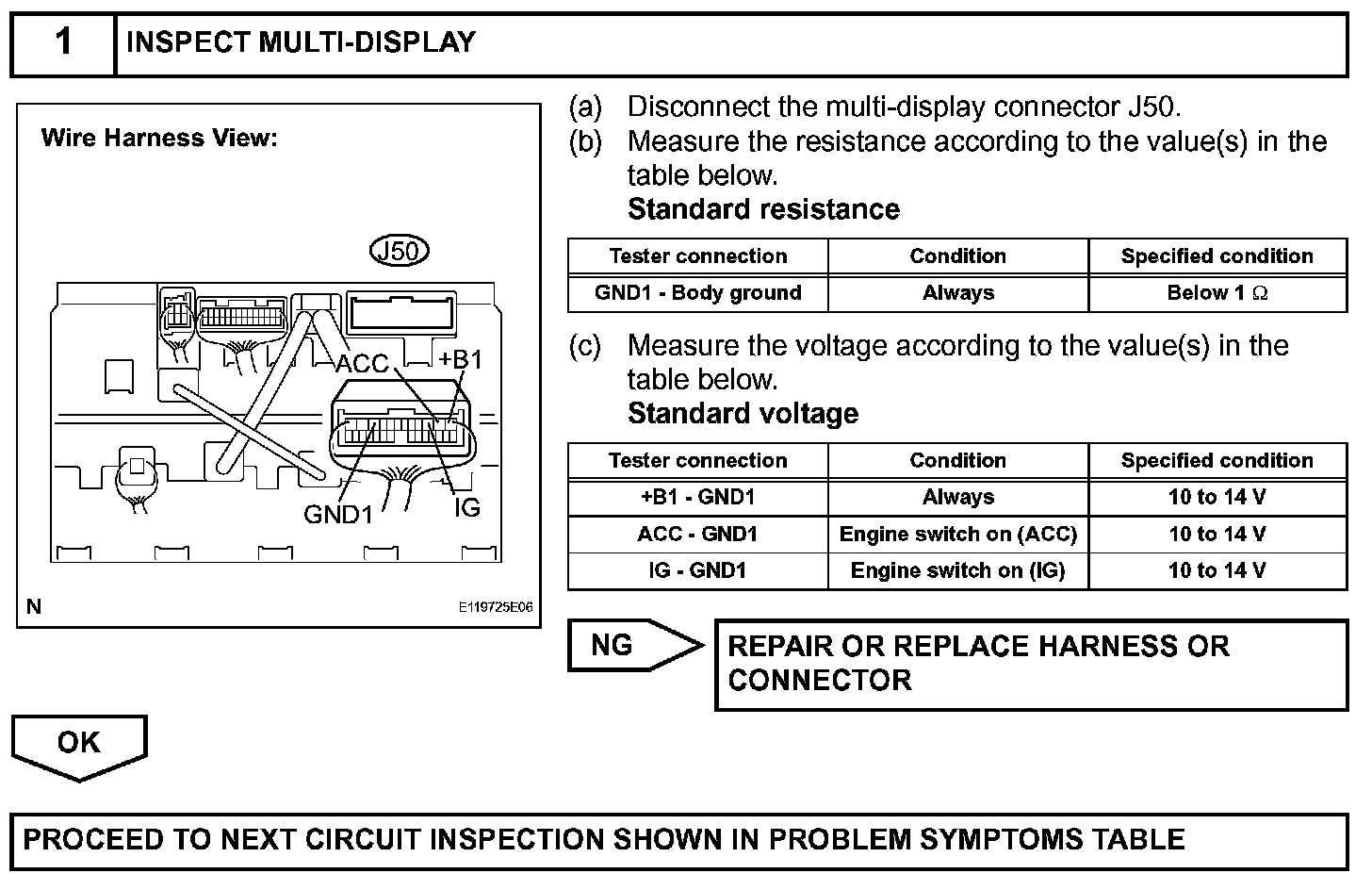

Step 1:




INSPECTION PROCEDURE
