Integration Control and Panel Assembly Power Source Circuit

Integration Control and Panel Assembly Power Source Circuit

DESCRIPTION

This is the power source circuit to operate the integration control & panel assembly.

Wiring Diagram:






Step 1:

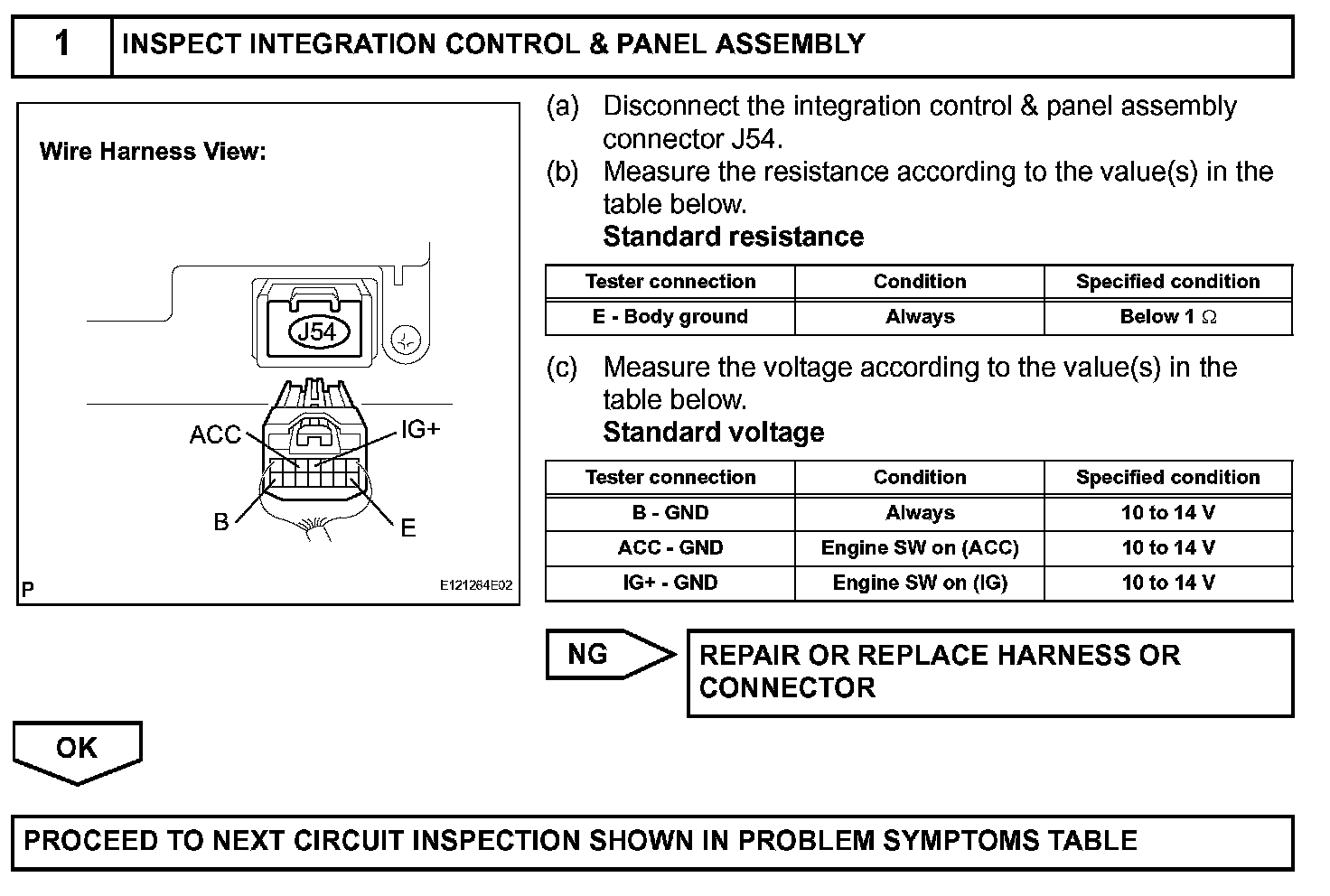

INSPECTION PROCEDURE
