Room Oscillator Circuit

Room Oscillator Circuit

DESCRIPTION

The certification ECU activates the front and rear cabin oscillators. The power is supplied from the certification ECU to both the front and rear cabin oscillators. The front and rear cabin oscillator circuits have the same wiring. If the smart access system with push-button start does not operate properly inside the vehicle, check the circuit for their oscillators.

Wiring Diagram:

Step 1-2:

Step 2 (Continued)-3:

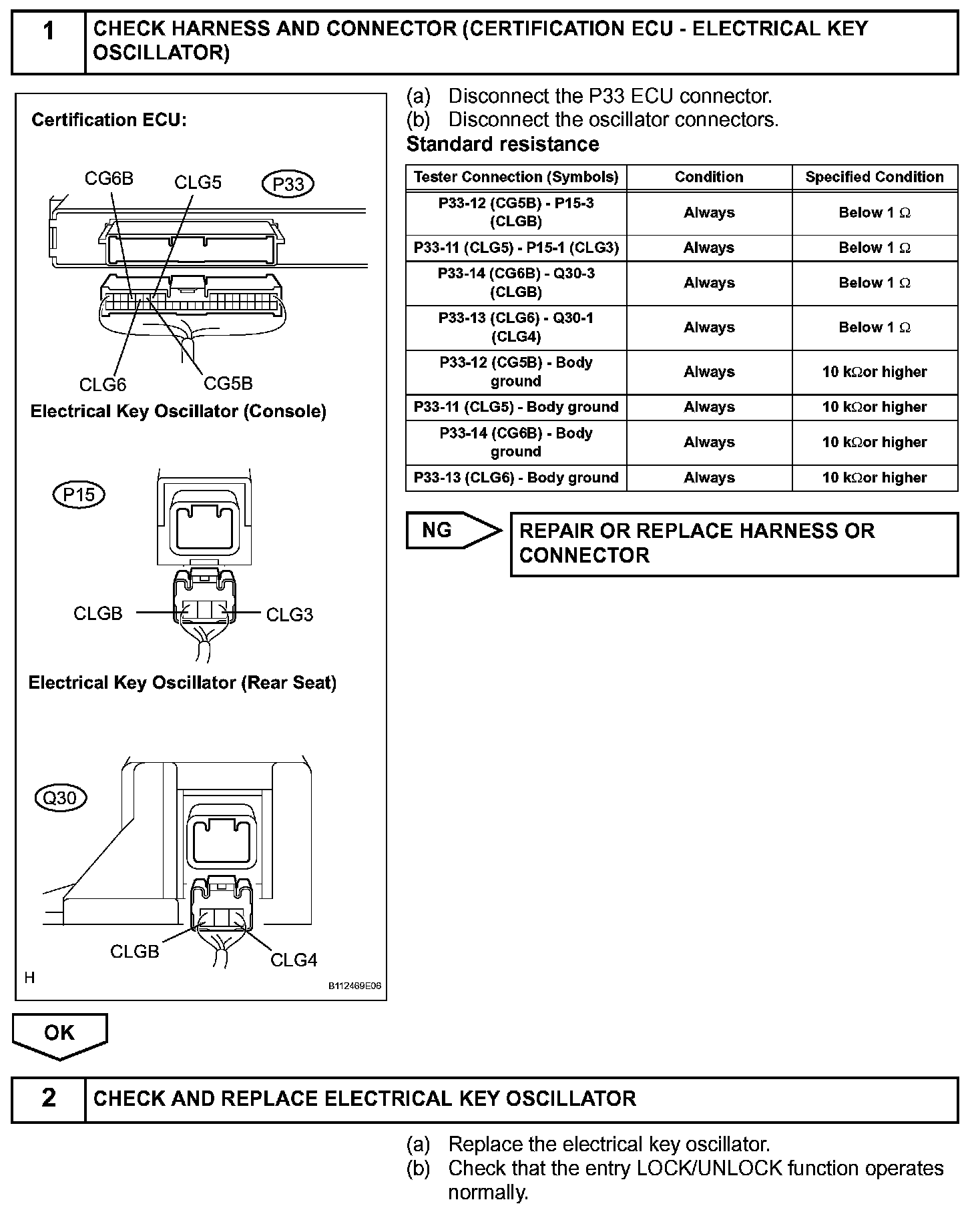

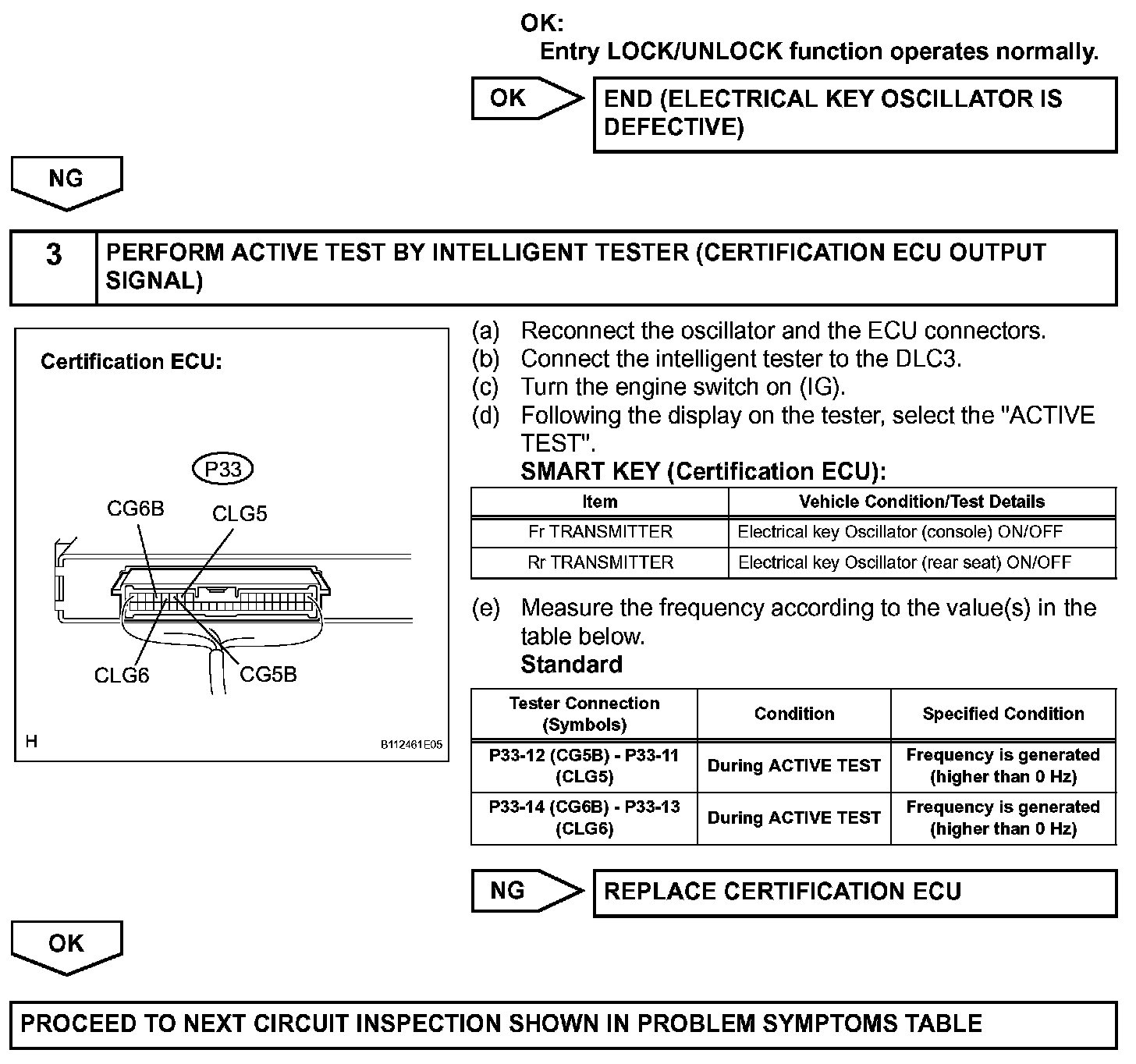

INSPECTION PROCEDURE
