Sending Units & Sensors
SENDING UNITS & SENSORS LOCATION
| Component | Location |
|---|---|
| Accelerator Position Sensor | Under left side of dash. See Figure. |
| A/C Pressure Sensor (Low) (2.5L) | Left rear of engine compartment. See Figure. |
| A/C Pressure Sensor (3.5L Shown, 2.5L Similar) | Left side of radiator. See Figure. |
| A/C Room Temperature Sensor | Behind lower left center of dash. See Figure. |
| Airbag Sensor (Left Front) (3.5L Shown, 2.5L Similar) | On left side of radiator support. See Figure. |
| Airbag Sensor (Right Front) (3.5L Shown, 2.5L Similar) | On right side of radiator support. See Figure. |
| Air Fuel Ratio Sensor (Bank 1 Sensor 1) (2.5L) | Right rear of engine. See Figure. |
| Air Fuel Ratio Sensor (Bank 1 Sensor 1) (3.5L) | Right rear of engine. See Figure. |
| Air Fuel Ratio Sensor (Bank 2 Sensor 1) (2.5L) | Left rear of engine. See Figure. |
| Air Fuel Ratio Sensor (Bank 2 Sensor 1) (3.5L) | Left rear of engine. See Figure. |
| Ambient Temperature Sensor (3.5L Shown, 2.5L Similar) | Behind left center of front bumper fascia. See Figure. |
| Automatic Light Control Sensor | Behind left side of dash. See Figure. |
| Crankshaft Position Sensor (2.5L) | On left front of engine. See Figure. |
| Crankshaft Position Sensor (3.5L) | On left front of engine. See Figure. |
| Engine Coolant Temperature Sensor (2.5L) | At rear of engine. See Figure. |
| Engine Coolant Temperature Sensor (3.5L) | At rear of engine. See Figure. |
| Engine Oil Level Sensor (2.5L) | Near bottom of engine. See Figure. |
| Engine Oil Level Sensor (3.5L) | Near bottom of engine. See Figure. |
| Fuel Pressure Sensor (2.5L) | At rear of engine. See Figure. |
| Fuel Pressure Sensor (3.5L) | Rear of engine compartment. See Figure. |
| Fuel Sender (Sub) | Under rear seat in fuel tank. See Figure. |
| Heated Oxygen Sensor (Bank 1 Sensor 2) | On right side exhaust system. See Figure. |
| Heated Oxygen Sensor (Bank 2 Sensor 2) | On left side exhaust system. See Figure. |
| Height Control Sensor (Front) (3.5L Shown, 2.5L Similar) | Left front of engine compartment. See Figure. |
| Height Control Sensor (Rear) | Under rear of vehicle. See Figure. |

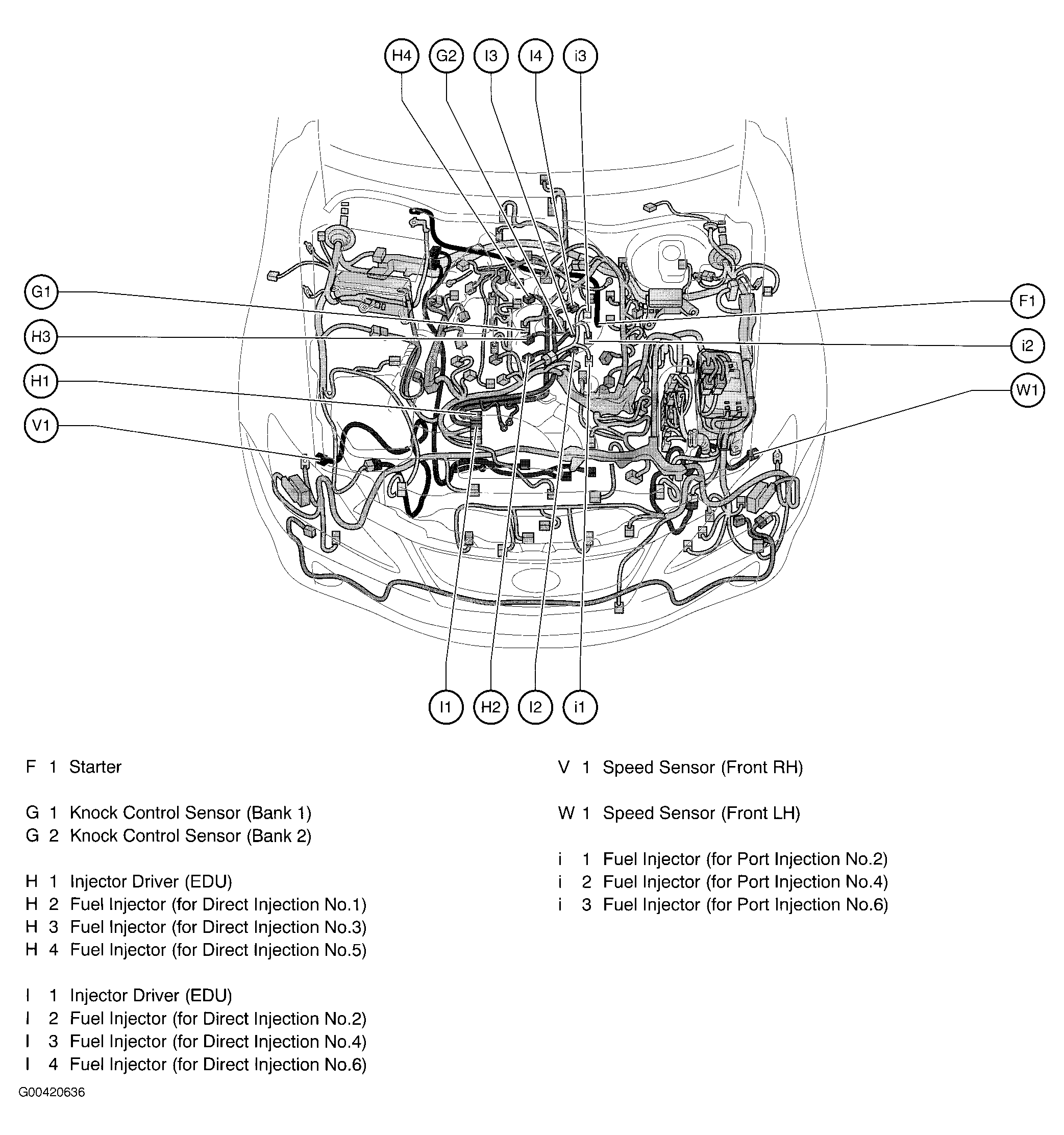

| Knock Control Sensor 1 (2.5L) | Top right side of engine. See Figure. |
| Knock Control Sensor 1 (3.5L) | Top right side of engine. See Figure. |
| Knock Control Sensor 2 (2.5L) | Top left side of engine. See Figure. |
| Knock Control Sensor 2 (3.5L) | Top left side of engine. See Figure. |
| Mass Air Flow Meter (2.5L) | Right side of engine compartment. See Figure. |
| Mass Air Flow Meter (3.5L) | On right side of engine compartment. See Figure. |
| Millimeter Wave Radar Sensor (3.5L Shown, 2.5L Similar) | Front of vehicle. See Figure. |
| Occupant Classification Sensor | Under front passenger's seat. See Figure. |
| Power Steering Torque Sensor (3.5L Shown, 2.5L Similar) | Left front of engine. See Figure. |
| Seat Belt Tension Sensor | Base of right "B" pillar. See Figure. |
| Side Air Bag Sensor (Front LH) | At left "B" pillar. See Figure. |
| Side Air Bag Sensor (Front RH) | At right "B" pillar. See Figure. |
| Side Air Bag Sensor (Rear LH) | Near left "C" pillar. See Figure. |
| Side Air Bag Sensor (Rear RH) | Near right "C" pillar. See Figure. |
| Smog Ventilation Sensor (3.5L) | In front of radiator. See Figure. |
| Speed Sensor (Left Front) (3.5L Shown, 2.5L Similar) | On left front wheel. See Figure. |
| Speed Sensor (Left Rear) | On left rear wheel. See Figure. |
| Speed Sensor (Right Front) (3.5L Shown, 2.5L Similar) | On right front wheel. See Figure. |
| Speed Sensor (Right Rear) | On right rear wheel. See Figure. |
| Steering Sensor | At steering column. See Figure. |
| Swirl Control Valve Sensor | At rear of engine. See Figure. |
| Transmission Revolution Sensor (Counter Gear) (2.5L) | At rear of transmission. See Figure. |
| Transmission Revolution Sensor (Counter Gear) (3.5L) | At rear of transmission. See Figure. |
| Transmission Revolution Sensor (Turbine) (2.5L) | At front of transmission. See Figure. |
| Transmission Revolution Sensor (Turbine) (3.5L) | At front of transmission. See Figure. |
| Ultrasonic Sensor (Front Corner LH) (3.5L Shown, 2.5L Similar) | Left front of vehicle. See Figure. |
| Ultrasonic Sensor (Front Corner RH) (3.5L Shown, 2.5L Similar) | Right front of vehicle. See Figure. |
| Ultrasonic Sensor (Rear Center LH) | On rear bumper. See Figure. |
| Ultrasonic Sensor (Rear Center RH) | On rear bumper. See Figure. |
| Ultrasonic Sensor (Rear Corner LH) | On rear bumper. See Figure. |
| Ultrasonic Sensor (Rear Corner RH) | On rear bumper. See Figure. |
| VVT Sensor (Bank 1 Exhaust Side) (2.5L) | Right rear of engine. See Figure. |
| VVT Sensor (Bank 1 Exhaust Side) (3.5L) | Right rear of engine. See Figure. |
| VVT Sensor (Bank 1 Intake Side) (2.5L) | Right front of engine. See Figure. |
| VVT Sensor (Bank 1 Intake Side) (3.5L) | Right front of engine. See Figure. |
| VVT Sensor (Bank 2 Exhaust Side) (2.5L) | Left rear of engine. See Figure. |
| VVT Sensor (Bank 2 Exhaust Side) (3.5L) | Left rear of engine. See Figure. |
| VVT Sensor (Bank 2 Intake Side) (2.5L) | Front of left cylinder head. See Figure. |
| VVT Sensor (Bank 2 Intake Side) (3.5L) | Front of left cylinder head. See Figure. |
| Yaw Rate Sensor | Under center console. See Figure. |
