Oil Pump: Components

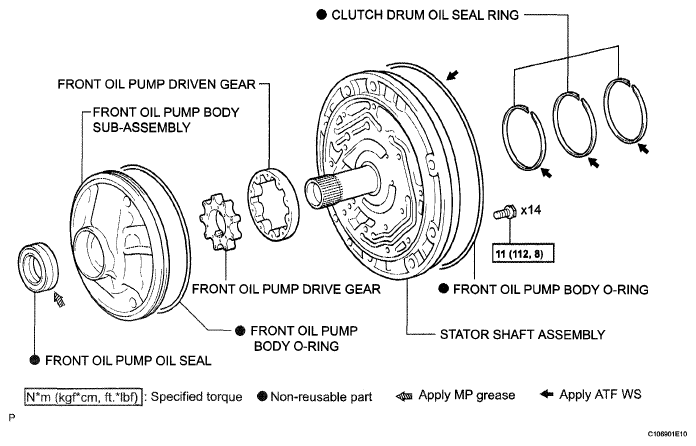

Fig 1: Exploded View Of Oil Pump Components With Torque Specification
G05317298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
