Park / Neutral Position Switch: Components

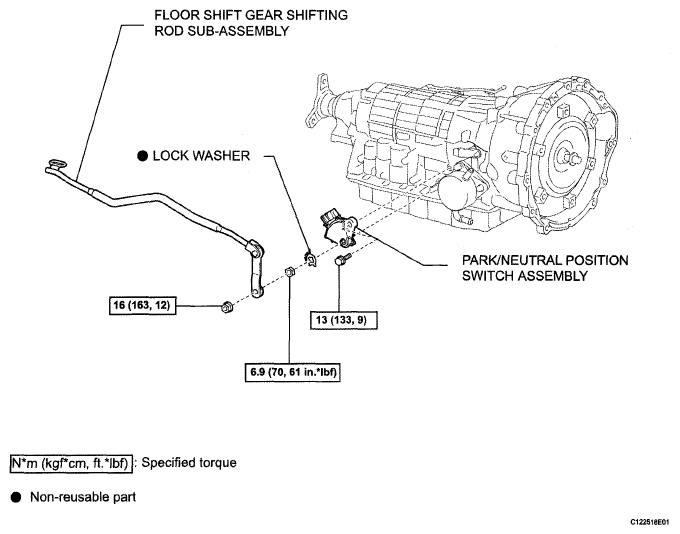

Fig 1: Park / Neutral Position Switch Replacement Components With Torque Specifications
G05316963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
