Entry Interior Alarm Does Not Sound

Entry Interior Alarm does not Sound

DESCRIPTION
The smart access system uses the combination meter buzzer to perform various vehicle interior warnings. When each warning's conditions are met, the certification ECU sends a buzzer signal to the meter ECU, and the combination meter buzzer sounds.

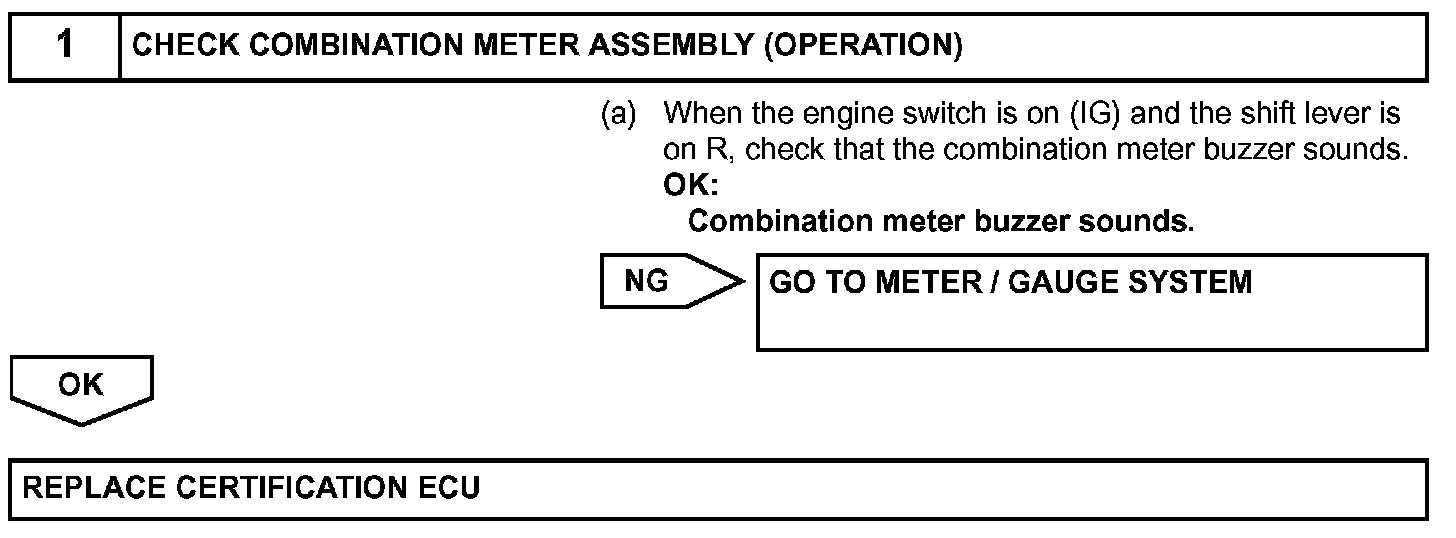

Step 1:




INSPECTION PROCEDURE
