IPDM E/R (Intelligent Power Distribution Module Engine Room): Wiring Diagram
WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

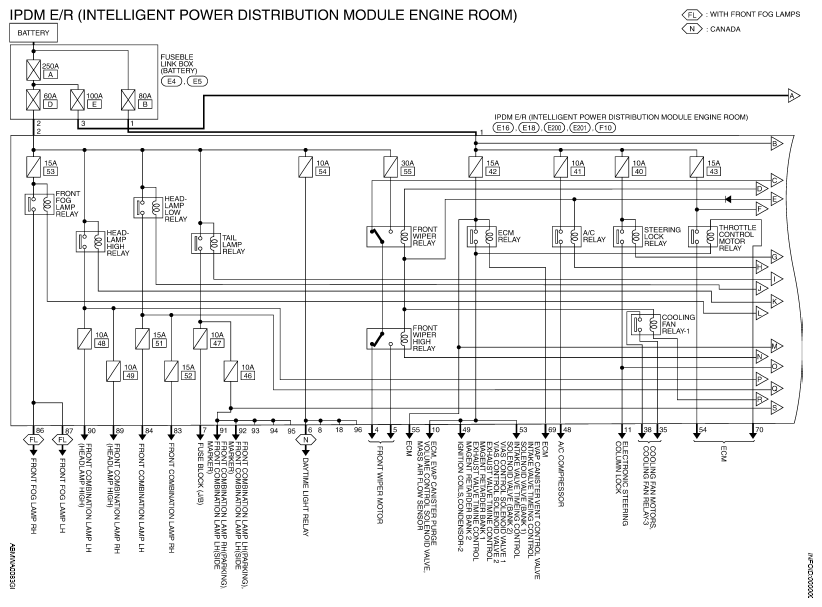

Fig 1: IPDM E/R - Wiring Diagram (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

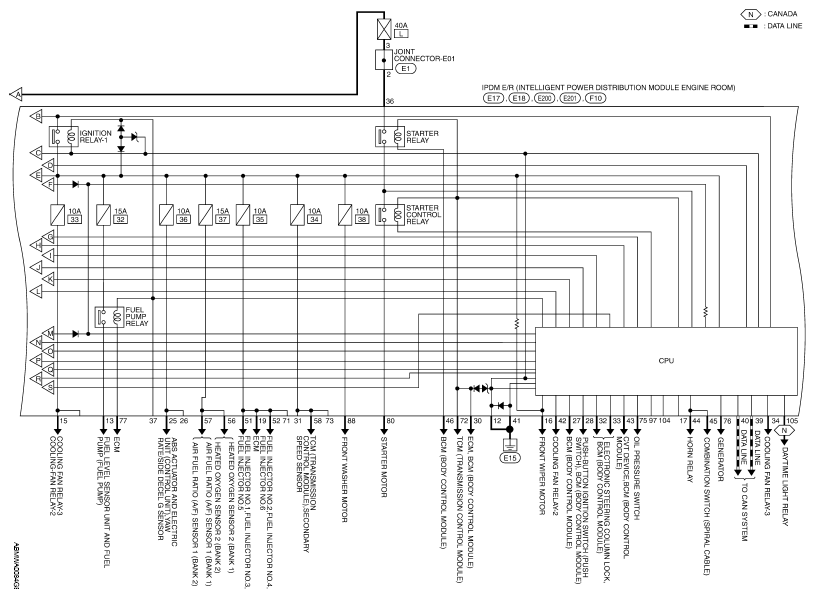

Fig 2: IPDM E/R - Wiring Diagram (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: IPDM E/R - Wiring Diagram (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

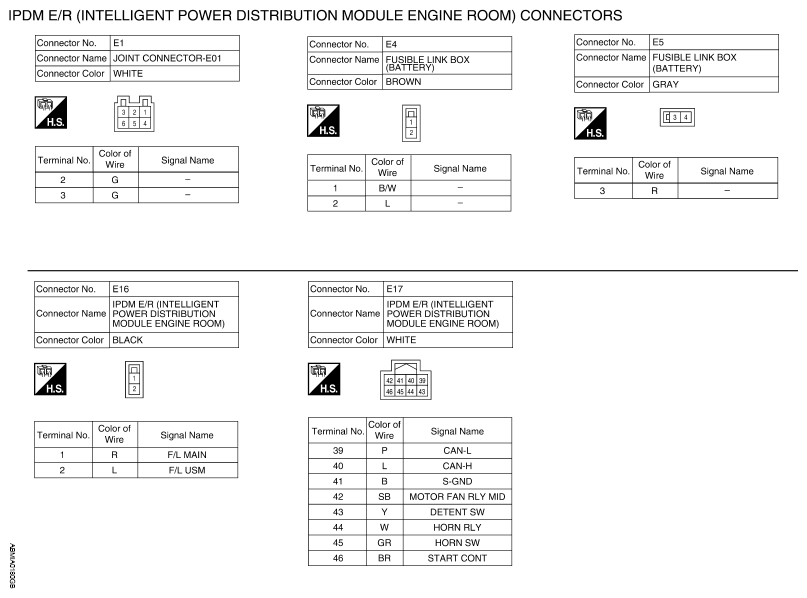

Fig 4: Intelligent Power Distribution Module Engine Room Connectors (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

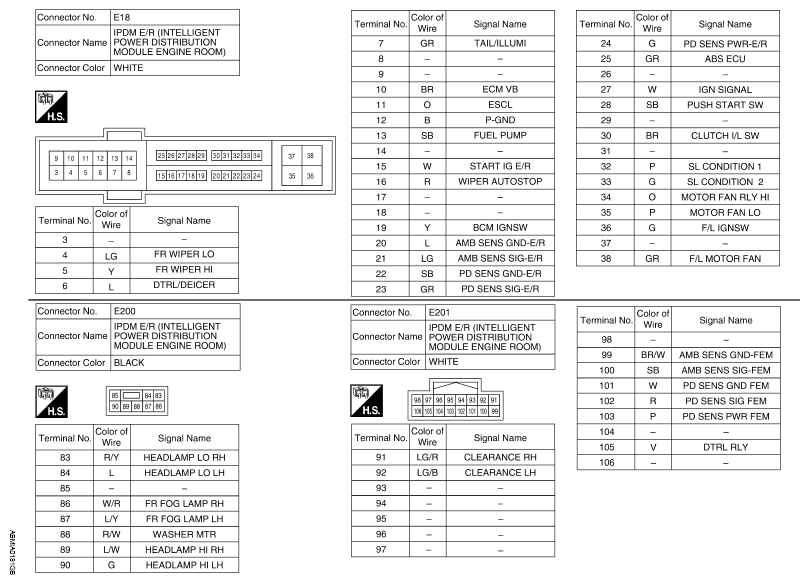

Fig 5: Intelligent Power Distribution Module Engine Room Connectors (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

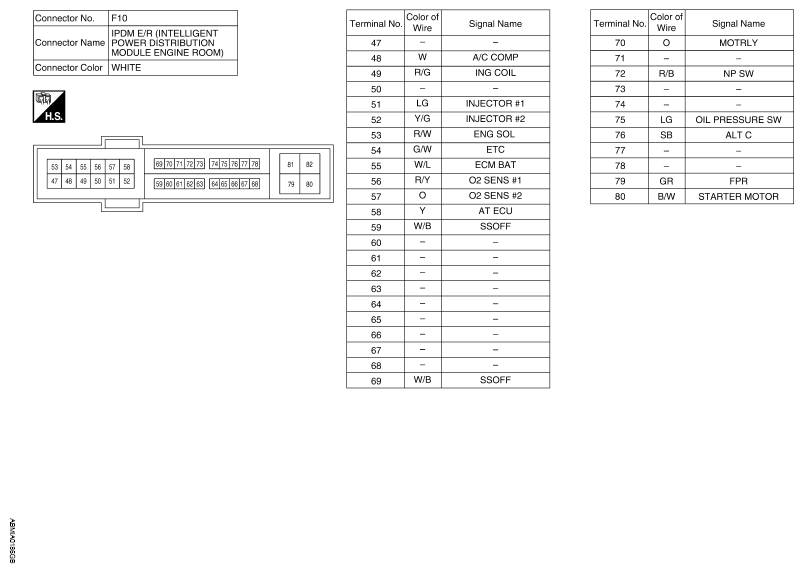

Fig 6: Intelligent Power Distribution Module Engine Room Connectors (3 Of 3)
