Inspection Procedure

1. Check that the entry lock and unlock function can be operated at each door.

   Result

   SMART ACCESS SYSTEM WITH PUSH-BUTTON START



   Result	Proceed to
   Entry function can be performed	A
   Entry function cannot be performed	B

B: GO TO DTC OF OTHER COMPONENTS (PROCEED TO PROBLEM SYMPTOM FLOWCHART FOR EACH DOOR) (See  PROBLEM SYMPTOMS TABLE   )

A: GO TO NEXT STEP

1. When the luggage compartment door opener switch is operated, check that the luggage compartment door opens.

   Result

   LUGGAGE DOOR OPENER OPERATION



   Result	Proceed to
   Luggage compartment door opens (w/o power trunk opener and closer system)	A
   Luggage compartment door does not open (w/o power trunk opener and closer system)	B
   Luggage compartment door opens (w/ power trunk opener and closer system)	C
   Luggage compartment door does not open (w/ power trunk opener and closer system)	D

B: GO TO LUGGAGE COMPARTMENT DOOR OPENER SYSTEM  (See LUGGAGE COMPARTMENT DOOR OPENER SYSTEM )

C: Go to step   11

D: GO TO POWER TRUNK LID SYSTEM  (See POWER TRUNK LID SYSTEM )

A: GO TO NEXT STEP

1. Using the intelligent tester or Techstream, read the Data List.
   1. Intelligent tester

      BODY NO.4 (Rear room junction block ECU)

      INTELLIGENT TESTER - BODY NO.4 (REAR ROOM JUNCTION BLOCK ECU)



      Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
      LUGG PUSH SW	Luggage compartment door opener switch / ON or OFF	ON: Luggage compartment door opener switch is pushed OFF: Luggage compartment door opener switch is not pushed	-

   2. Techstream

      Body No.4 (Rear room junction block ECU)

      TECHSTREAM - BODY NO.4 (REAR ROOM JUNCTION BLOCK ECU)



      Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
      Luggage Push Switch	Luggage compartment door opener switch / ON or OFF	ON: Luggage compartment door opener switch is pushed OFF: Luggage compartment door opener switch is not pushed	-

      OK: On tester screen, item changes between ON and OFF according to above chart.

NG: Go to step   9

OK: GO TO NEXT STEP

1. Bring the electrical key transmitter near the electrical key antenna (in rear bumper), and perform an entry luggage compartment open function check.
   Fig 1: Identifying Electrical Key Transmitter Position (In Rear Bumper)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: If the key is brought within 0.2 m (0.6 ft) of the rear bumper, communication is not possible.

   HINT:

   • When the electrical key transmitter is brought near the electrical key antenna, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • If the inspection result is that the operation check is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

   Result

   WAVE ENVIRONMENT



   Result	Proceed to
   Operation check fails	A
   Operation check is normal	B

B: AFFECTED BY WAVE INTERFERENCE

A: GO TO NEXT STEP

Fig 2: Identifying Electrical Key Transmitter Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Diagnostic mode inspection (rear inside oscillator)
   1. Connect the intelligent tester or Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the tester on.
   4. Enter the following menus:
      1. Intelligent tester - Select: DIAGNOSIS / OBD/ MOBD / SMART ACCESS / ID UTILITY / SMART DAIGMODE / LUGG + OVERHEAD /
      2. Techstream - Select: Body Electrical / Smart Access / Smart Communication Check / Overhead + Luggage /
   5. When the electrical key transmitter is held at the same height as the rear bumper upper surface and aligned with the center of the rear of the vehicle, check that the wireless door lock buzzer sounds.

      HINT:

      If the buzzer sounds, it can be determined that the luggage compartment exterior transmitter is operating normally.

      OK: Wireless door lock buzzer sounds

NG: Go to step 6

OK: REPLACE CERTIFICATION ECU

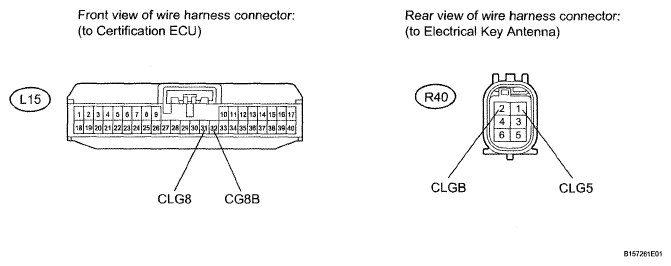

Fig 3: Identifying R40 Electrical Key Antenna - L15 Certification ECU Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the R40 antenna connector.
2. Disconnect the L15 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   ELECTRICAL KEY ANTENNA - CERTIFICATION ECU



   Tester Connection	Condition	Specified Condition
   L15-31 (CLG8)-R40-1 (CLG5)	Always	Below 1 Ω
   L15-32 (CG8B)-R40-1 (CLGB)	Always	Below 1 Ω
   L15-31 (CLG8)-Body ground	Always	10 kΩ or higher
   L15-32 (CG8B)-Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

1. Replace the electrical key antenna with a new one or normally functioning one (see REMOVAL  ).
2. Check that the entry luggage compartment open function operates normally.

   OK: Operates normally

NG: Go to step 8

OK: GO TO NEXT STEP

1. Replace the luggage junction block ECU with a new one or normally functioning one.
2. Check that the entry luggage compartment open function operates normally.

   OK: Operates normally

NG: REPLACE CERTIFICATION ECU

OK: END (JUNCTION BLOCK ECU IS DEFECTIVE)

1. Measure the resistance according to the value(s) in the table below.
   Fig 4: Identifying Luggage Compartment Door Opener Switch Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   LUGGAGE COMPARTMENT DOOR OPENER SWITCH



   Tester Connection	Switch Condition	Specified Condition
   1 -2	OFF	Below 1 Ω
   1-2	ON	10 kΩ or higher

NG: REPLACE LUGGAGE COMPARTMENT DOOR OPENER SWITCH (See  LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH   )

OK: GO TO NEXT STEP

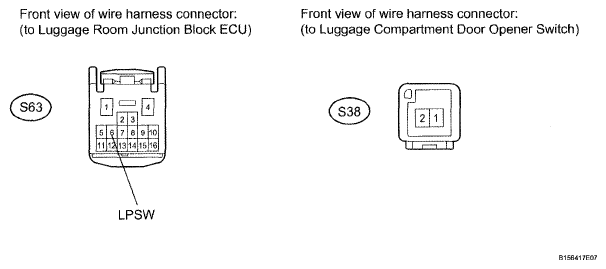

Fig 5: Identifying S38 Luggage Compartment Door Opener Switch - S63 Luggage Room Junction Block ECU Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the S38 switch connector.
2. Disconnect the S63 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   LUGGAGE COMPARTMENT DOOR OPENER SWITCH - LUGGAGE ROOM JUNCTION BLOCK ECU



   Tester Connection	Condition	Specified Condition
   S38-1 - Body ground	Always	Below 1 Ω
   S38-2 - S63-6 (LPSW)	Always	Below 1 Ω
   S38-2 - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE LUGGAGE ROOM JUNCTION BLOCK (REAR JUNCTION BLOCK ECU)

1. Using the intelligent tester or Techstream, read the Data List.
   1. Intelligent tester

      BACK-DOOR (Luggage closer motor assembly)

      INTELLIGENT TESTER - BACK-DOOR (LUGGAGE CLOSER MOTOR ASSEMBLY)



      Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
      DOOR HANDLE SW	Luggage compartment door opener switch / ON or OFF	ON: Luggage compartment door opener switch is pushed OFF: Luggage compartment door opener switch is not pushed	-

   2. Techstream

      Back Door (Luggage closer motor assembly)

      TECHSTREAM - BACK DOOR (LUGGAGE CLOSER MOTOR ASSEMBLY)



      Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
      Back Door Handle SW	Luggage compartment door opener switch / ON or OFF	ON: Luggage compartment door opener switch is pushed OFF: Luggage compartment door opener switch is not pushed	-

      HINT:

      For vehicles with the power trunk opener and closer system, the Data List of the power trunk opener and closer ECU can be used to check the luggage compartment door opener switch information. For vehicles without the power trunk opener and closer system, the Data List of the luggage room junction block ECU can be used to check the luggage compartment door opener switch information.

      OK: On tester screen, item changes between ON and OFF according to above chart.

NG: Go to step   17

OK: GO TO NEXT STEP

Fig 6: Identifying Electrical Key Transmitter Position (In Rear Bumper)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Bring the electrical key transmitter near the electrical key antenna (in rear bumper), and perform an entry luggage compartment open function check.
   NOTE: If the key is brought within 0.2 m (0.6 ft.) of the rear bumper, communication is not possible.

   HINT:

   • When the electrical key transmitter is brought near the electrical key antenna, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • If the inspection result is that the operation check is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

   Result

   WAVE ENVIRONMENT



   Result	Proceed to
   Operation check fails	A
   Operation check is normal	B

B: REPLACE LUGGAGE CLOSER MOTOR ASSEMBLY  (See REMOVAL )

A: GO TO NEXT STEP

Fig 7: Identifying Electrical Key Transmitter Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Diagnostic mode inspection (rear inside oscillator)
   1. Connect the intelligent tester or Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the tester on.
   4. Enter the following menus:
      1. Intelligent tester - Select: DIAGNOSIS / OBD/ MOBD / SMART ACCESS / ID UTILITY / SMART DAIGMODE / LUGG + OVERHEAD /
      2. Techstream - Select: Body Electrical / Smart Access / Smart Communication Check / Overhead + Luggage /
   5. When the electrical key transmitter is held at the same height as the rear bumper upper surface and aligned with the center of the rear of the vehicle, check that the wireless door lock buzzer sounds.

      HINT:

      If the buzzer sounds, it can be determined that the luggage compartment exterior transmitter is operating normally.

      OK: Wireless door lock buzzer sounds

NG: Go to step 14

OK: REPLACE CERTIFICATION ECU

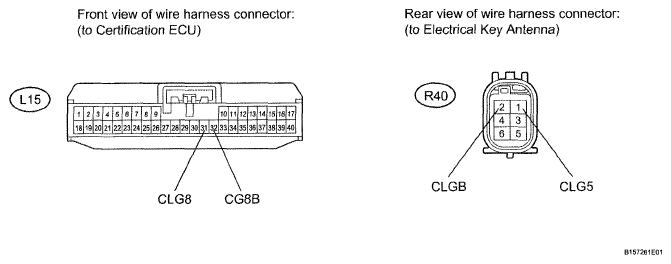

Fig 8: Identifying R40 Electrical Key Antenna - L15 Certification ECU Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the R40 antenna connector.
2. Disconnect the L15 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   ELECTRICAL KEY ANTENNA - CERTIFICATION ECU



   Tester Connection	Condition	Specified Condition
   L15-31 (CLG8)-R40-1 (CLG5)	Always	Below 1 Ω
   L15-32 (CG8B)-R40-1 (CLGB)	Always	Below 1 Ω
   L15-31 (CLG8)-Body ground	Always	10 kΩ or higher
   L15-32 (CG8B)-Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

1. Replace the electrical key antenna with a new one or normally functioning one (see REMOVAL  ).
2. Check that the entry luggage compartment open function operates normally.

   OK: Operates normally

NG: Go to step 16

OK: END (ELECTRICAL KEY ANTENNA IS DEFECTIVE)

1. Replace the luggage closer motor with a new one or normally functioning one (see TRUNK LID ACTUATOR ).
2. Check that the entry luggage compartment open function operates normally.

   OK: Operates normally

NG: REPLACE CERTIFICATION ECU

OK: END (LUGGAGE CLOSER MOTOR IS DEFECTIVE)

Fig 9: Identifying Luggage Compartment Door Opener Switch Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   LUGGAGE COMPARTMENT DOOR OPENER SWITCH



   Tester Connection	Switch Condition	Specified Condition
   1 - 2	OFF	Below 1 Ω
   1 - 2	ON	10 kΩ or higher

NG: REPLACE LUGGAGE COMPARTMENT DOOR OPENER SWITCH (See  LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH   )

OK: GO TO NEXT STEP

Fig 10: Identifying S38 Luggage Compartment Door Opener Switch - S43 Luggage Door Closer Motor Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the S38 switch connector.
2. Disconnect the S43 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   LUGGAGE COMPARTMENT DOOR OPENER SWITCH - LUGGAGE DOOR CLOSER MOTOR



   Tester Connection	Condition	Specified Condition
   S38-1 - Body ground	Always	Below 1 Ω
   S38-2 - S43-19 (LPSW)	Always	Below 1 Ω
   S38-2 - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE LUGGAGE CLOSER MOTOR ASSEMBLY  (See REMOVAL )
