System Diagram

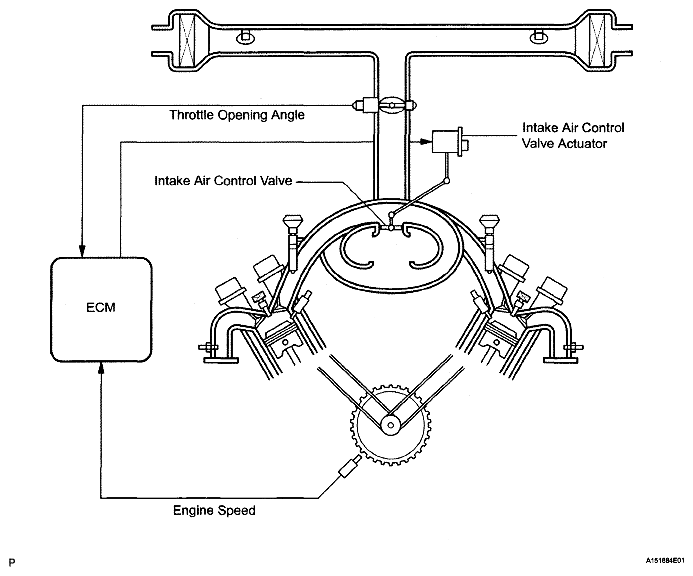

Fig 1: Intake System Diagram
G04948126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

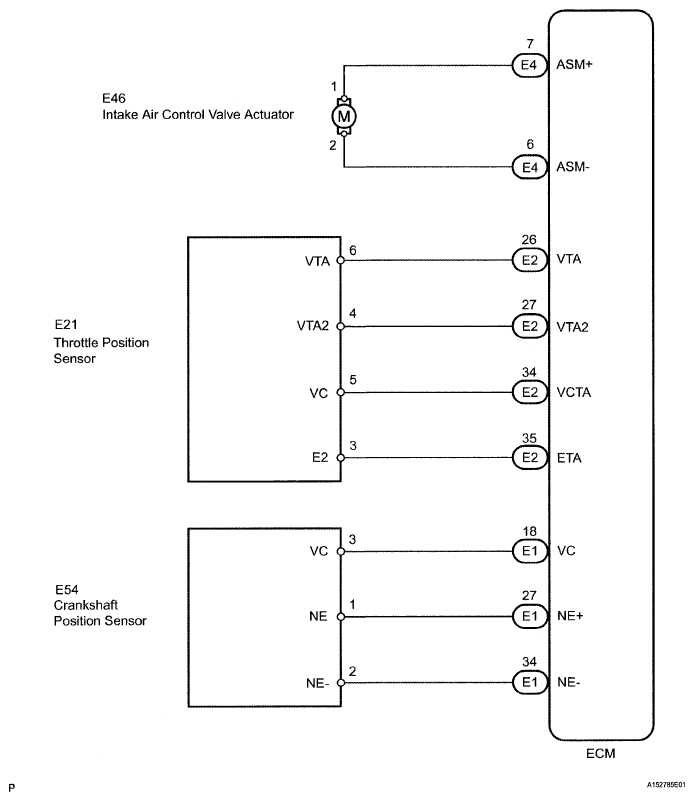

Fig 2: Intake System Circuit Diagram
G04948127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
