Roof Headlining: Components

Fig 1: Identifying Roof Headlining Components (1 Of 5)
G05281722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Roof Headlining Replacement Components With Torque Specifications (2 Of 5)
G05281723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Roof Headlining Replacement Components With Torque Specifications (3 Of 5)
G05281724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

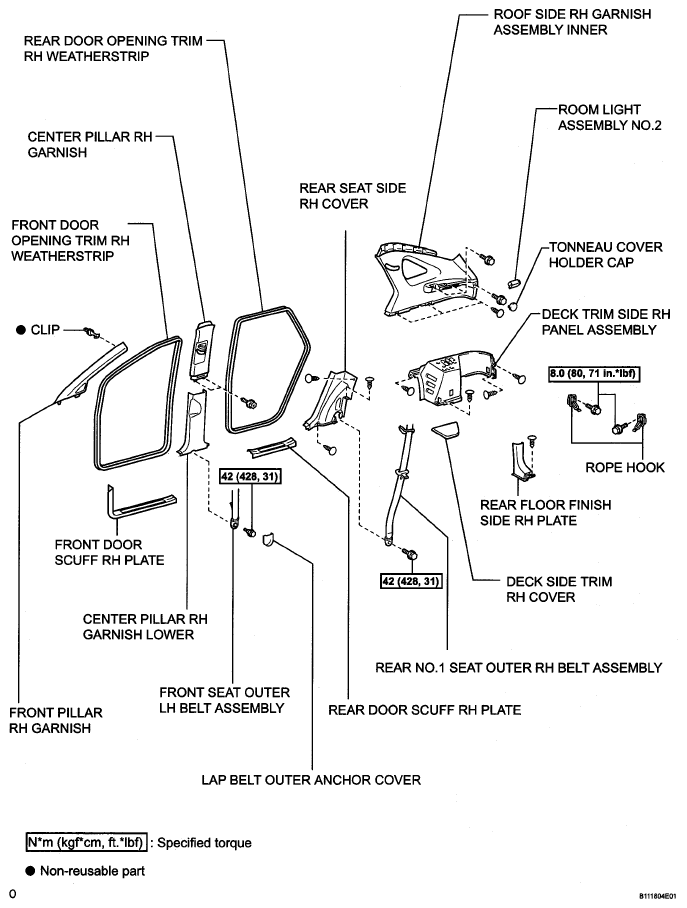

Fig 4: Roof Headlining Replacement Components With Torque Specifications (4 Of 5)
G05281725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

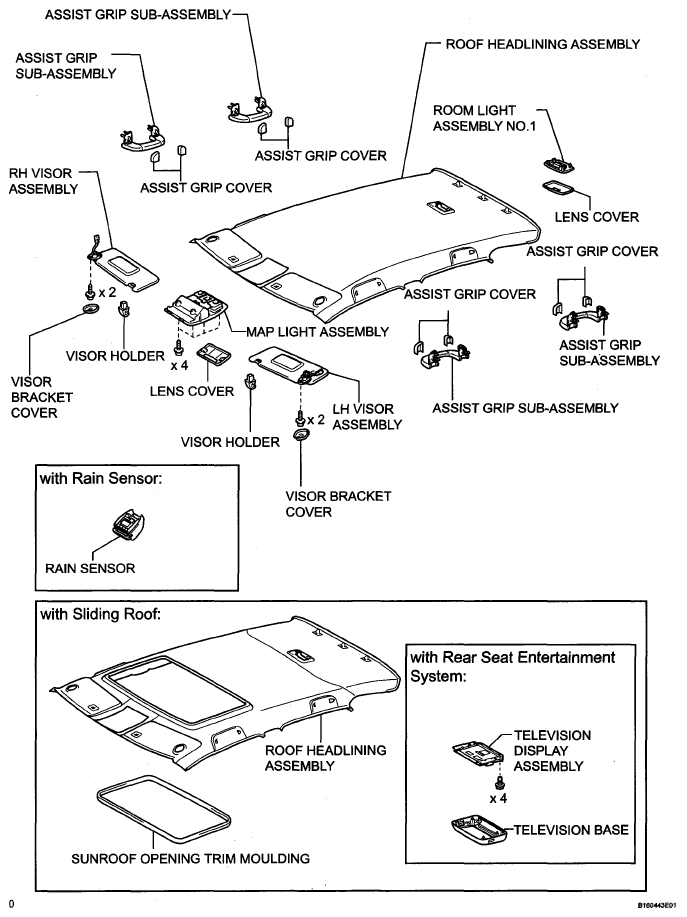

Fig 5: Identifying Roof Headlining Components (5 Of 5)
G05281726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
