Refrigerant Line: Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

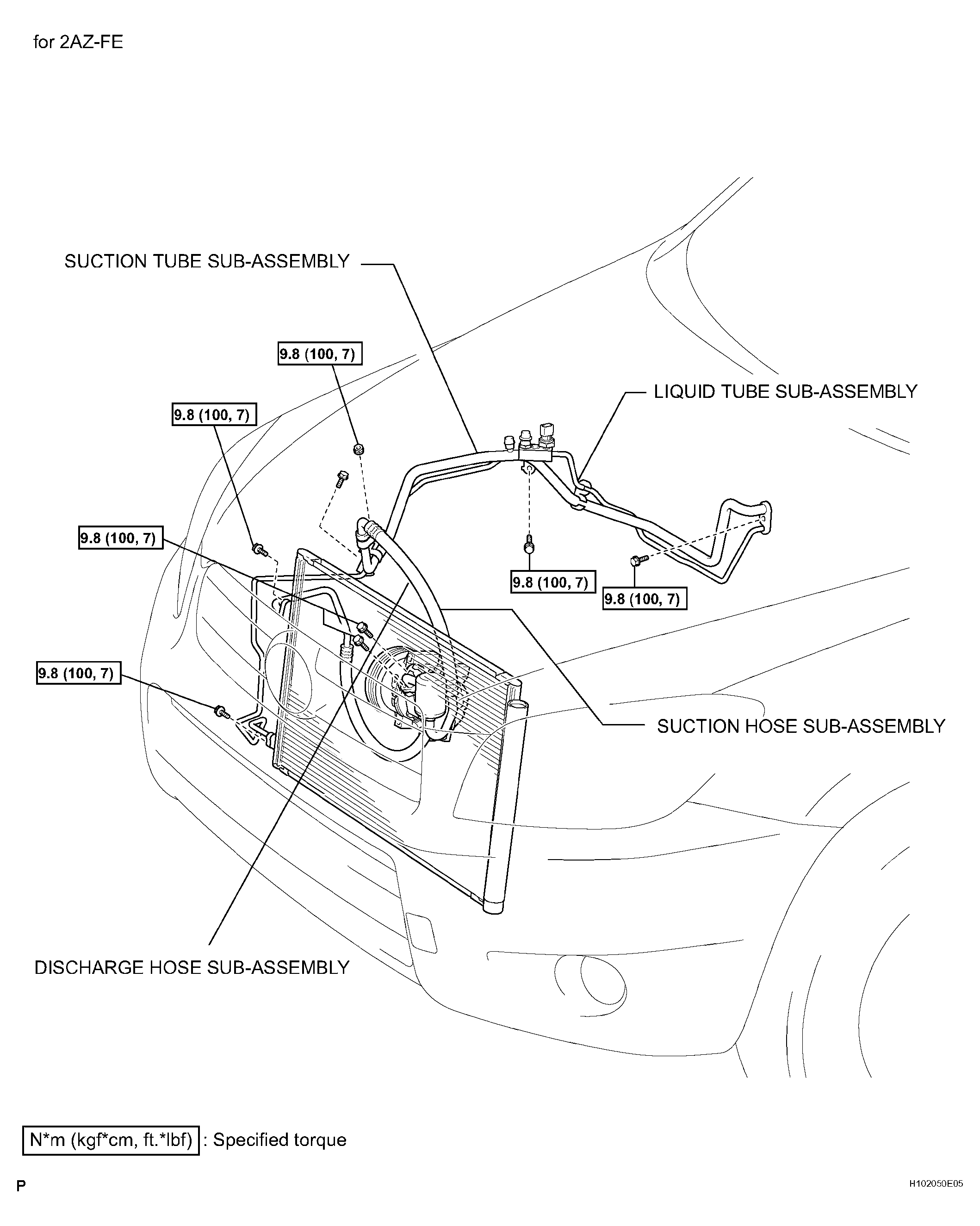

Fig 1: Refrigerant Line Replacement Components With Torque Specifications (1 Of 2)
G04489955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

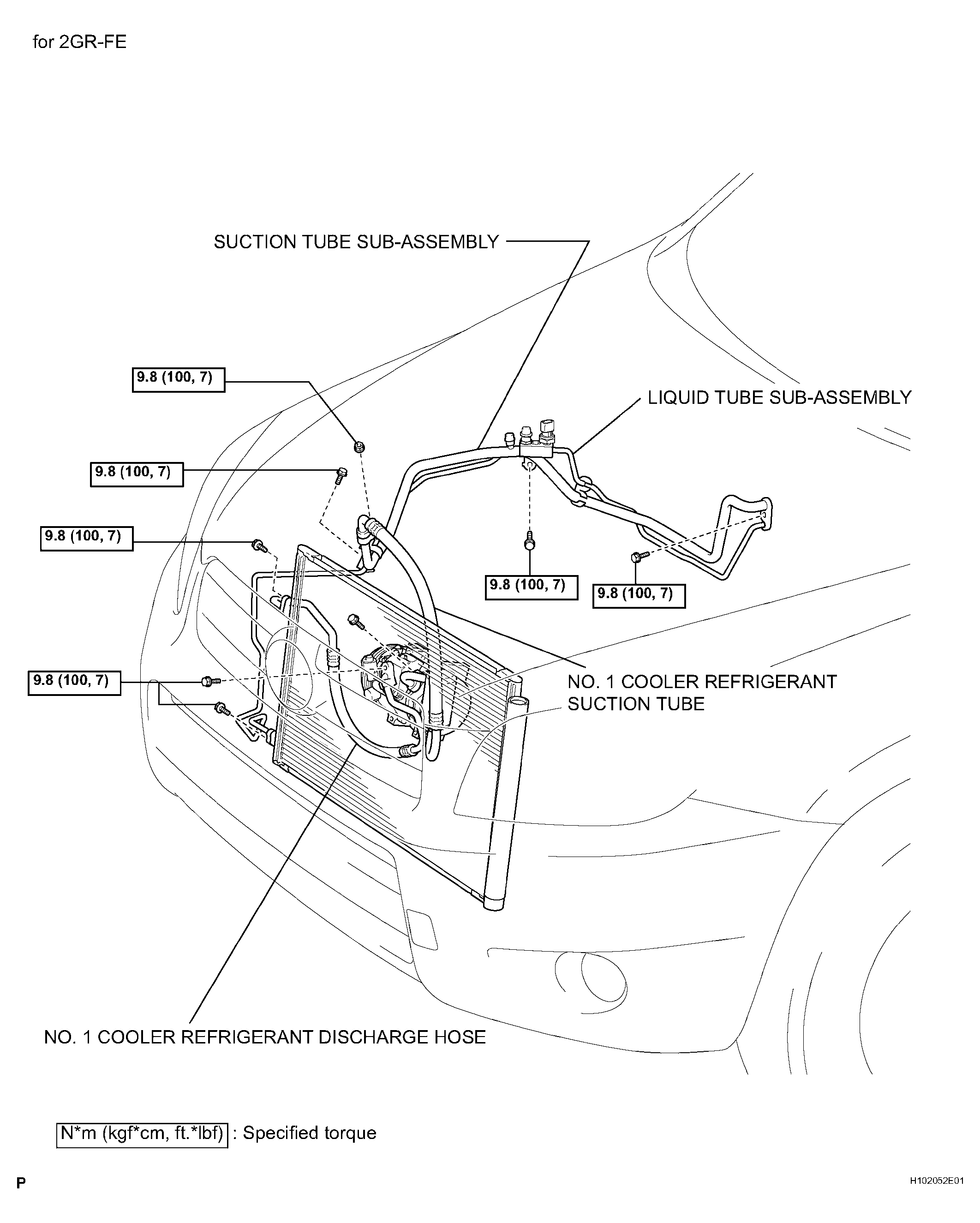

Fig 2: Refrigerant Line Replacement Components With Torque Specifications (2 Of 2)
G04489956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
