Illumination Circuit: Wiring Diagram

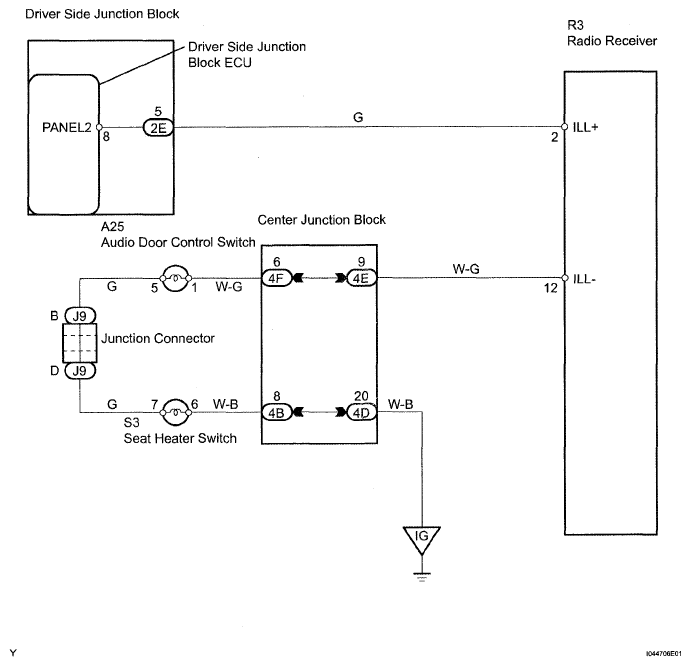

Fig 1: Illumination - Wiring Diagram
G05293067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
