System Diagram

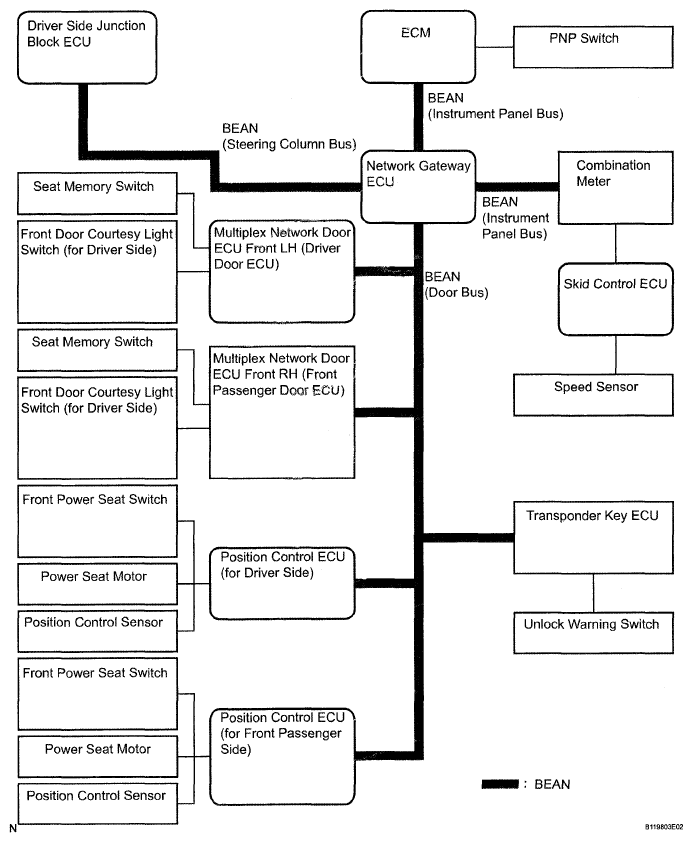

Fig 1: Identifying Front Power Seat Control System Diagram
G05293672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
