Driver Side Door ECU Power Source Circuit: Wiring Diagram

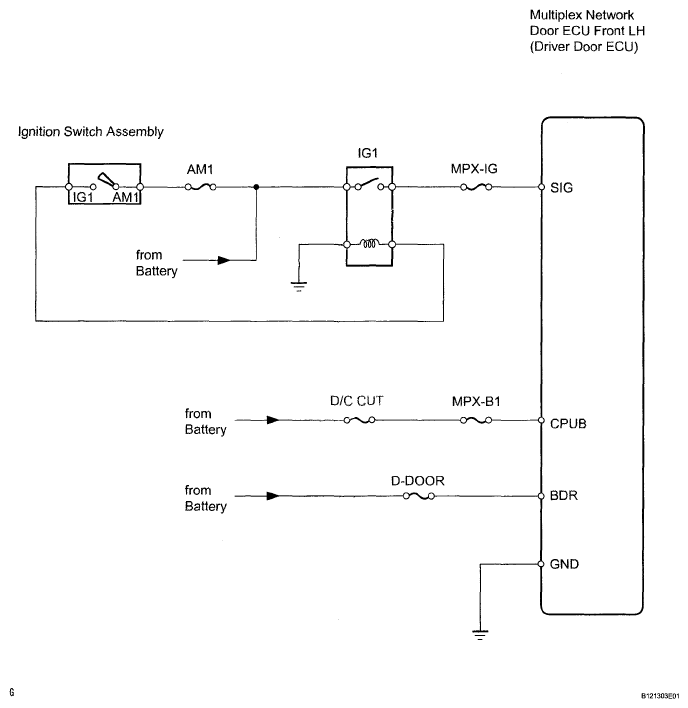

Fig 1: Driver Side Door ECU Power Source - Wiring Diagram
G05293447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
