VSC OFF Indicator Light Circuit: Wiring Diagram

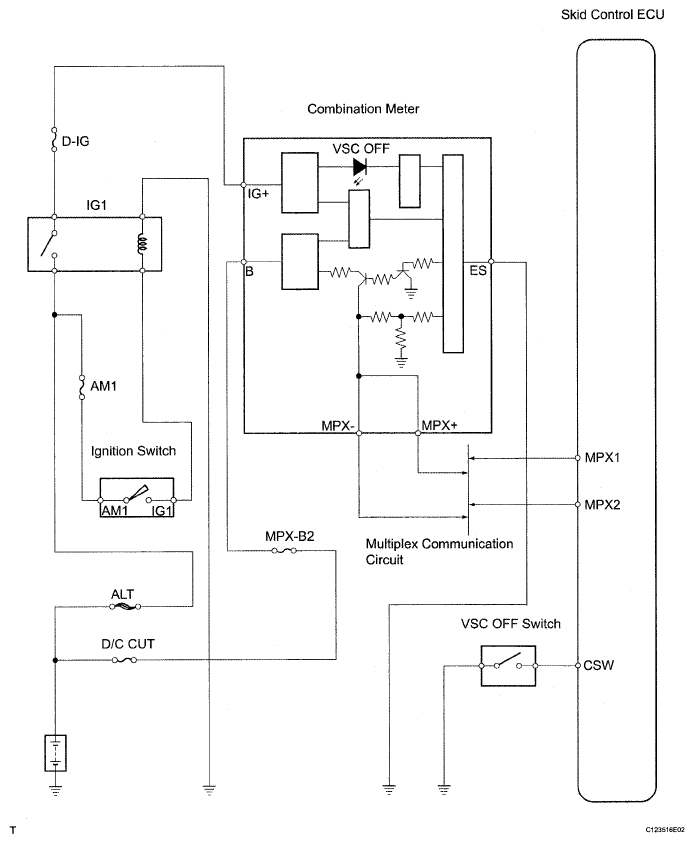

Fig 1: VSC OFF Indicator Light Circuit - Wiring Diagram
G05290692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
