Front Axle Hub Bolt: Components

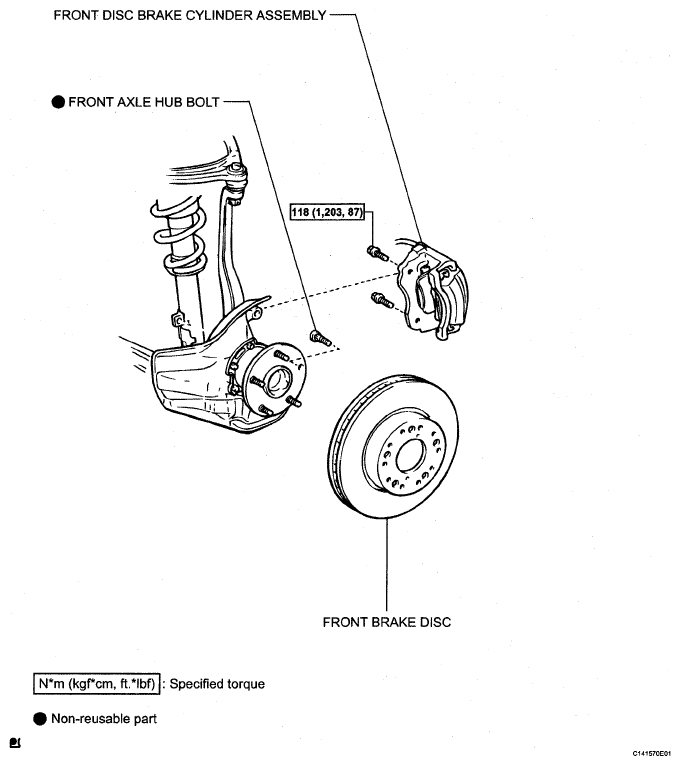

Fig 1: Front Axle Hub Bolt Replacement Components With Torque Specifications
G05290351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
