Headlight Cleaner: Notes

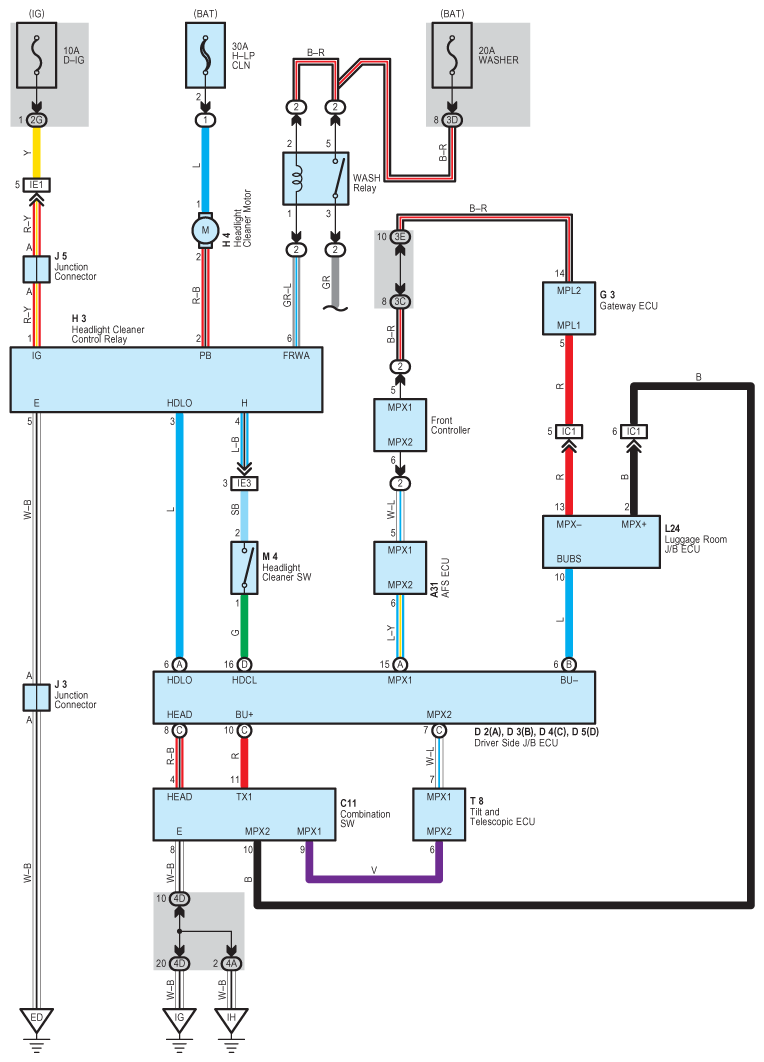

Fig 1: Headlight Cleaner - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
