Parts Location

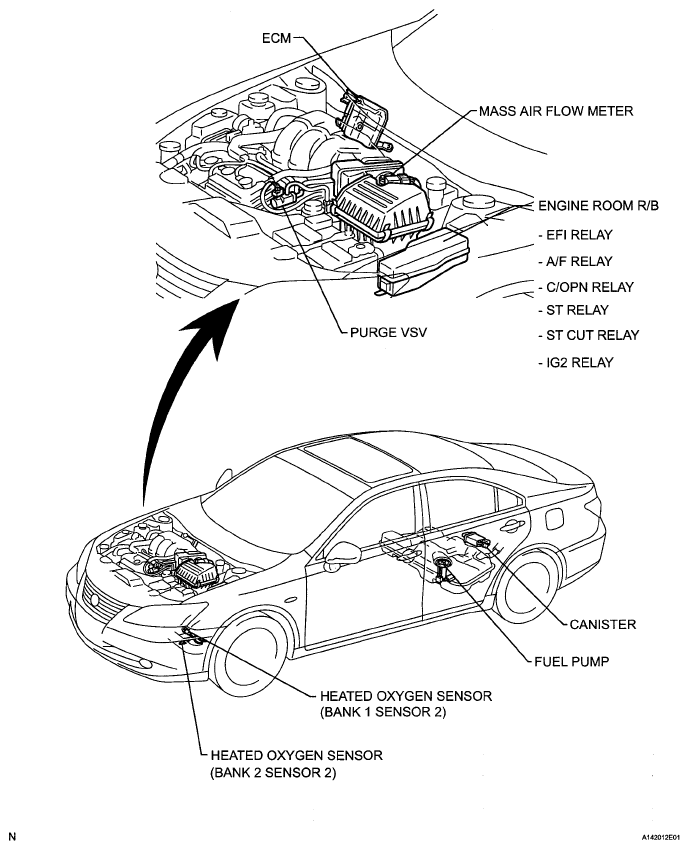

Fig 1: Identifying Engine Control System Components Location (1 Of 4)
G05247568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

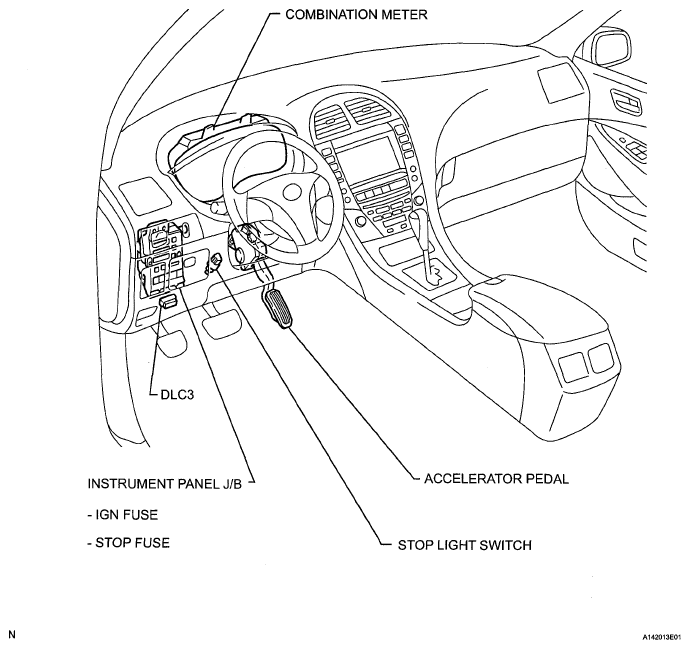

Fig 2: Identifying Engine Control System Components Location (2 Of 4)
G05247569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

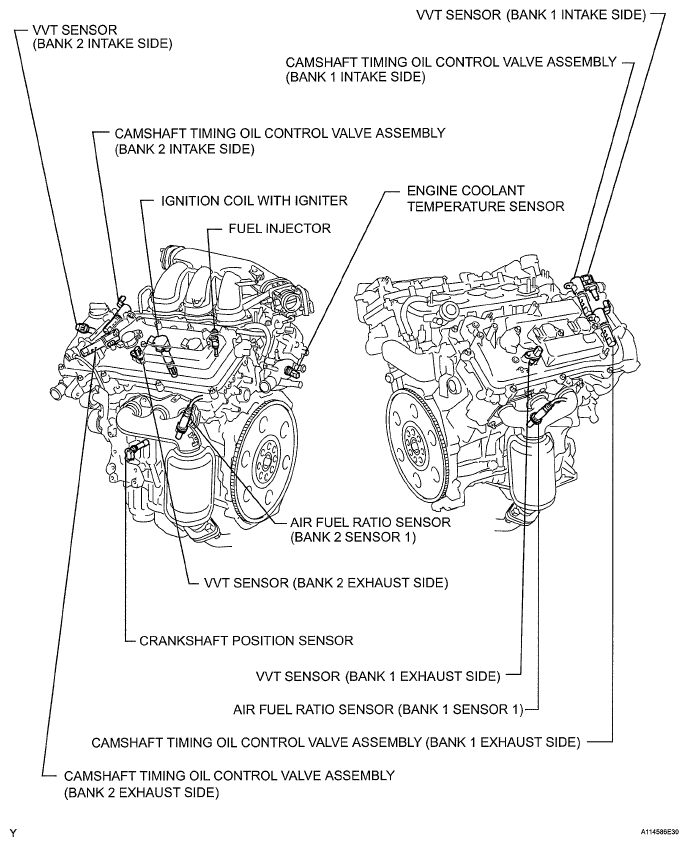

Fig 3: Identifying Engine Control System Components Location (3 Of 4)
G05835188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

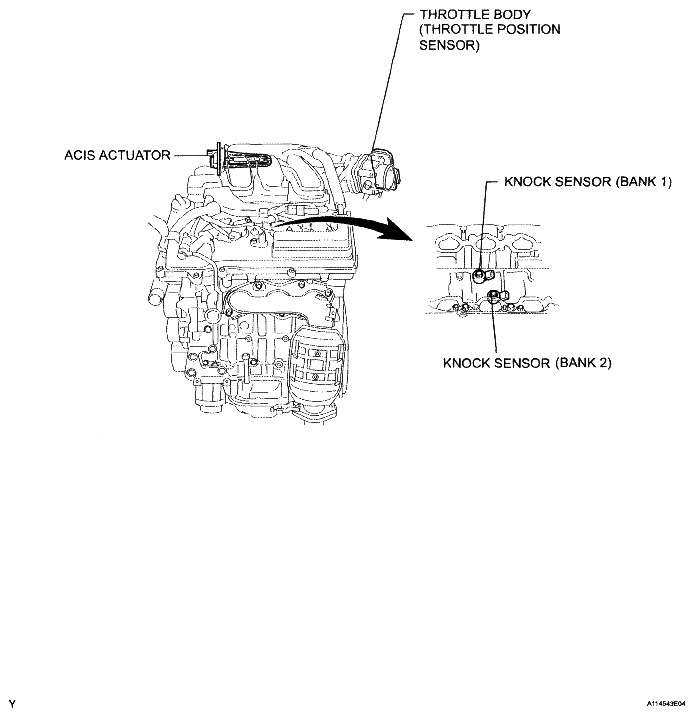

Fig 4: Identifying Engine Control System Components Location (4 Of 4)
G04973417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
