Acceleration Sensor: Components

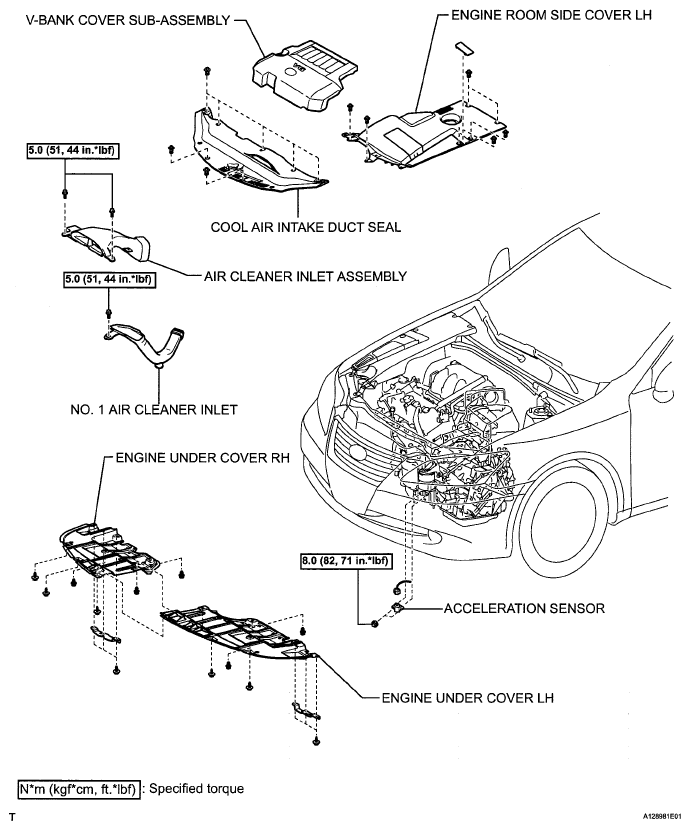

Fig 1: Acceleration Sensor Replacement Components With Torque Specifications
G05247990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
