System Diagram

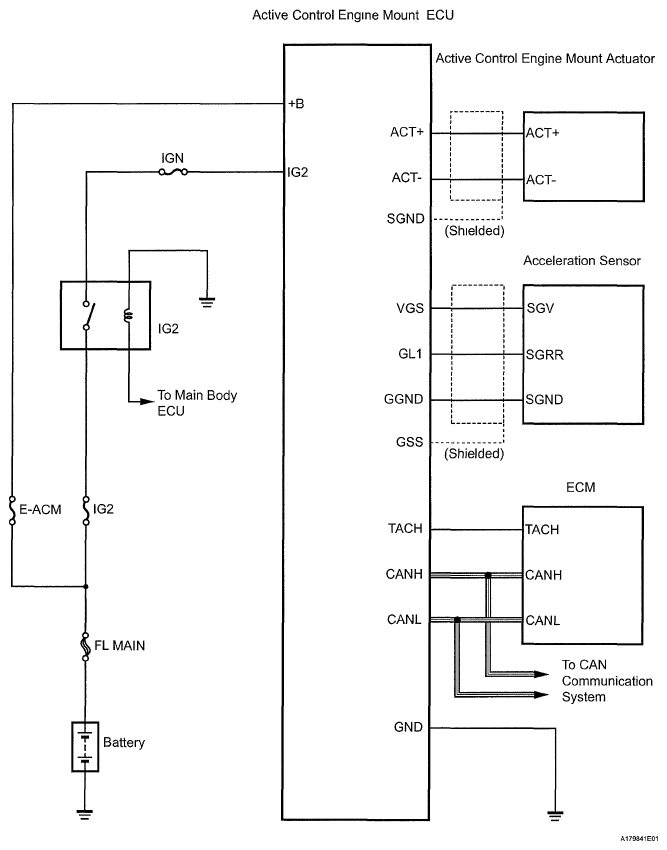

Fig 1: Active Control Engine Mount System Diagram

G05835602

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
