Knock Sensor: Components

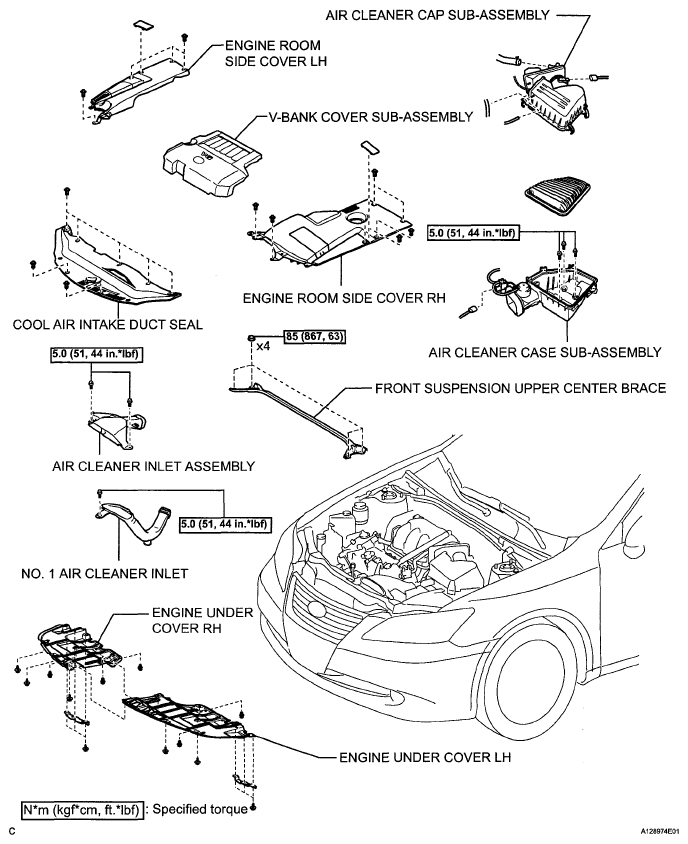

Fig 1: Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specifications (1 Of 2)
G05247918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

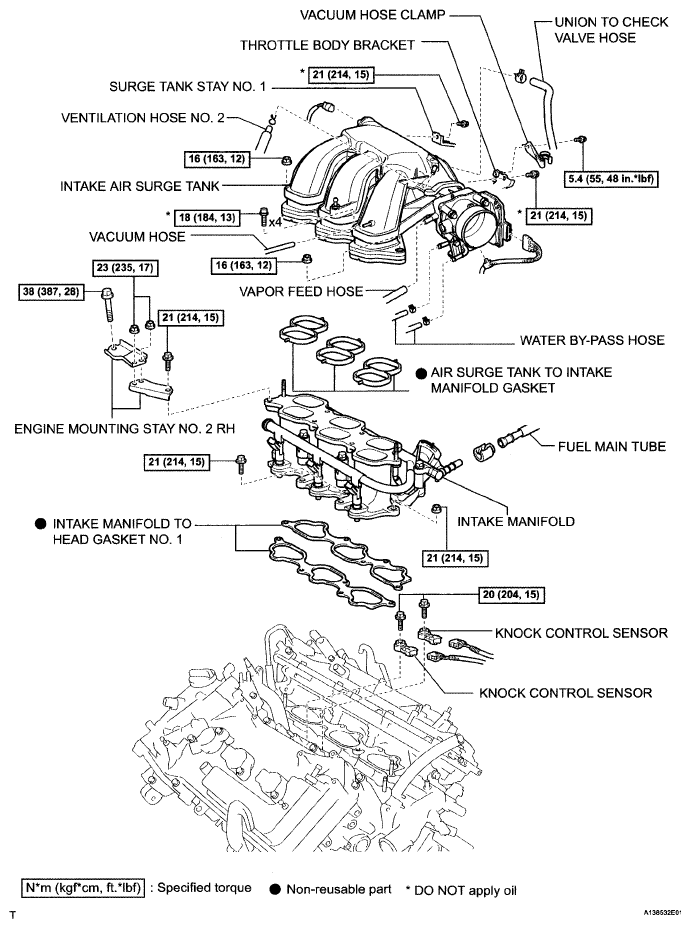

Fig 2: Knock Sensor Replacement Components With Torque Specifications (2 Of 2)
G04973903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
