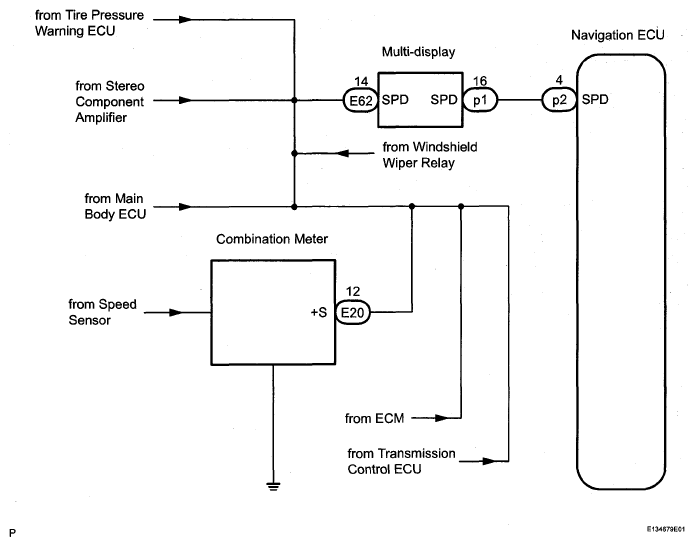

Vehicle Speed Signal Circuit between Navigation ECU and Multi-Display: Wiring Diagram

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
