DTC P0190 Fuel Rail Pressure Sensor Circuit; DTC P0192 Fuel Rail Pressure Sensor Circuit Low Input; DTC P0193 Fuel Rail Pressure Sensor Circuit High Input: Wiring Diagram

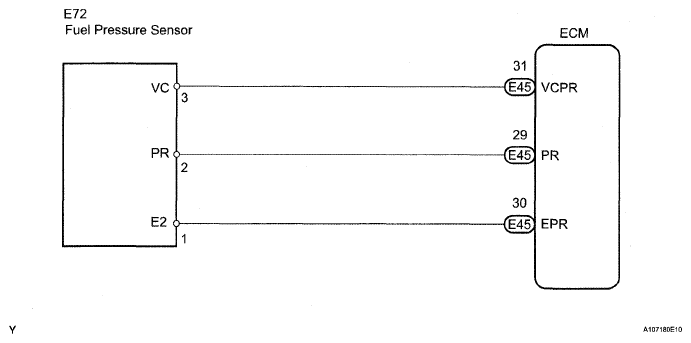

Fig 1: Fuel Pressure Sensor - Wiring Diagram
G05285130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
