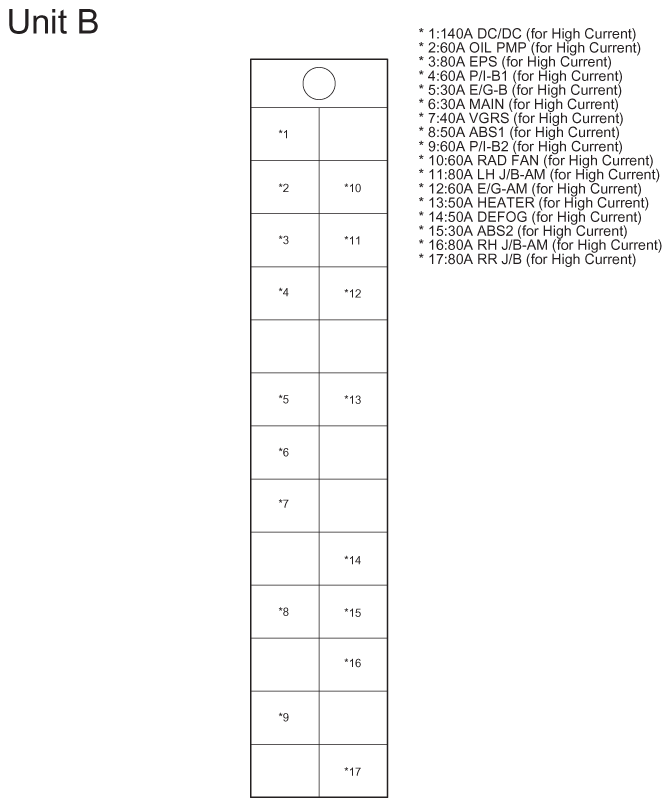

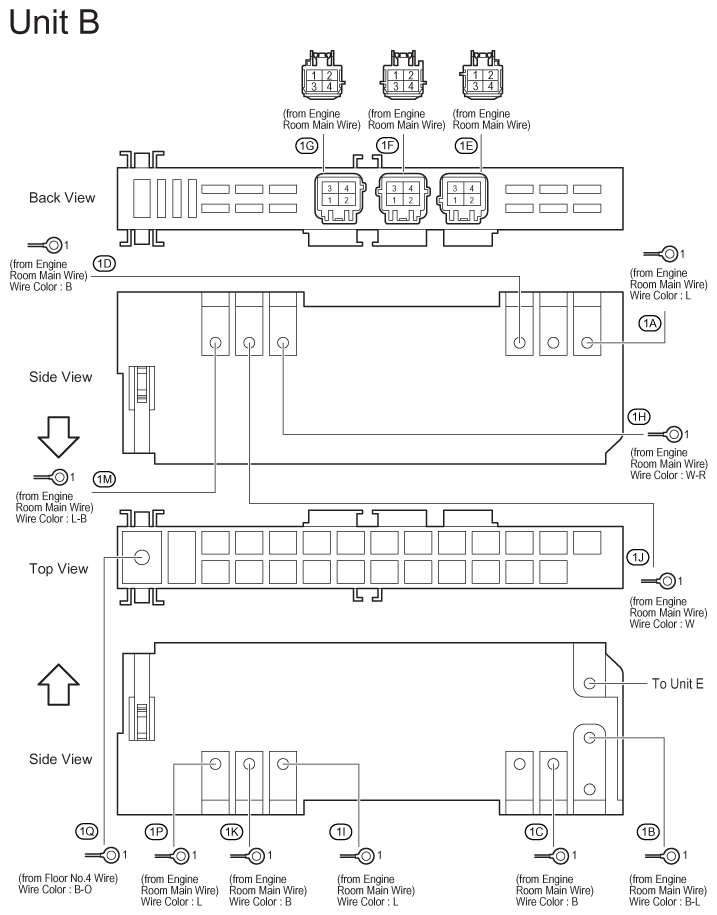

Inner Circuit - Unit B
Engine Room R/B And J/B No. 1 Fuse Identification Legend
| Fuse | System | |
|---|---|---|
| 7.5A | DOME | Active Stabilizer Suspension System |
| Adaptive Front-Lighting System | ||
| Automatic Glare-Resistant EC Mirror with Compass and Garage Door Opener | ||
| Combination Meter | ||
| Cruise Control | ||
| Dynamic Radar Cruise Control | ||
| Engine Control | ||
| Front Fog Light | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Hybrid System and Shift Control System | ||
| Illumination | ||
| Interior Light | ||
| Luggage Compartment Door Opener and Closer | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Pre-Collision System | ||
| Push-Button Start, Hybrid Vehicle Immobiliser and Steering Lock | ||
| Sliding Roof | ||
| Taillight | ||
| Tire Pressure Warning System | ||
| Vehicle Dynamics Integrated Management (for Hybrid Vehicle) | ||
| VGRS System | ||
| Wireless Door Lock Control | ||
| 7.5A | IGCT NO. 2 | Hybrid System and Shift Control System |
| 7.5A | IGCT NO. 3 | Hybrid System and Shift Control System |
| 7.5A | MPX-B | Active Stabilizer Suspension System |
| Adaptive Front-Lighting System | ||
| Audio System, LEXUS Navigation System, Multi Display and Parking Assist (Rear View Monitor) | ||
| Automatic Light Control | ||
| Back-Up Light | ||
| Combination Meter | ||
| Cruise Control | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Electronic Modulated Suspension | ||
| Engine Control | ||
| EPS | ||
| 7.5A | MPX-B | Front Fog Light |
| Front Wiper and Washer | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Horn | ||
| Hybrid System and Shift Control System | ||
| Illumination | ||
| Interior Light | ||
| Light Auto Turn Off System | ||
| Luggage Compartment Door Opener and Closer | ||
| Mirror Heater | ||
| Multiplex Communication System (AVC-LAN) | ||
| Multiplex Communication System (BEAN) | ||
| Multiplex Communication System (CAN) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Seat (Driver's Seat) | ||
| Power Seat (Front Passenger's Seat) | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Pre-Collision System | ||
| Push-Button Start, Hybrid Vehicle Immobiliser and Steering Lock | ||
| Rear Sunshade | ||
| Remote Control Mirror | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| SRS | ||
| Taillight | ||
| Theft Deterrent | ||
| Tire Pressure Warning System | ||
| Vehicle Dynamics Integrated Management (for Hybrid Vehicle) | ||
| VGRS System | ||
| Wireless Door Lock Control | ||
| 10A | ABS MAIN1 | Vehicle Dynamics Integrated Management (for Hybrid Vehicle) |
| 10A | ABS MAIN2 | Dynamic Radar Cruise Control |
| Vehicle Dynamics Integrated Management (for Hybrid Vehicle) | ||
| 10A | ABS MAIN3 | Dynamic Radar Cruise Control |
| Vehicle Dynamics Integrated Management (for Hybrid Vehicle) | ||
| 10A | ECU-B | Electronic Modulated Suspension |
| EPS | ||
| 10A | ECU-B | Fuel Lid Opener |
| Headlight Cleaner | ||
| LEXUS Link System (Mayday System) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Rear Sunshade | ||
| Remote Control Mirror | ||
| Vehicle Dynamics Integrated Management (for Hybrid Vehicle) | ||
| VGRS System | ||
| 10A | EFI NO. 2 | Engine Control |
| 10A | ETCS | Cruise Control |
| Dynamic Radar Cruise Control | ||
| Engine Control | ||
| 10A | FR TAIL | Automatic Light Control |
| Light Auto Turn Off System | ||
| Taillight | ||
| Theft Deterrent | ||
| Wireless Door Lock Control | ||
| 10A | HORN | Horn |
| LEXUS Link System (Mayday System) | ||
| Theft Deterrent | ||
| Wireless Door Lock Control | ||
| 10A | IG2 | Combination Meter |
| Engine Control | ||
| Ignition | ||
| 10A | INV W/P | Hybrid System and Shift Control System |
| 10A | RELIEF VLV | Engine Control |
| 15A | A/F | Engine Control |
| 15A | FR FOG | Front Fog Light |
| 15A | H-LP L LWR | Headlight |
| 15A | H-LP R LWR | Headlight |
| 15A | TURN-HAZ | Turn Signal and Hazard Warning Light |
| 20A | BATT FAN | Hybrid System and Shift Control System |
| 20A | H-LP UPR | Headlight |
| Theft Deterrent | ||
| 20A | IGCT NO. 1 | Cruise Control |
| Dynamic Radar Cruise Control | ||
| Hybrid System and Shift Control System | ||
| 20A | INJ | Engine Control |
| 20A | WASHER | Front Wiper and Washer |
| 25A | DEICER | Front Window Deicer |
| 25A | EFI | Cruise Control |
| Dynamic Radar Cruise Control | ||
| Engine Control | ||
| 25A | F/PMP | Engine Control |
| 30A | ABS MOTOR | Dynamic Radar Cruise Control |
| Vehicle Dynamics Integrated Management (for Hybrid Vehicle) | ||
| 30A | ABS2 | Dynamic Radar Cruise Control |
| Vehicle Dynamics Integrated Management (for Hybrid Vehicle) | ||
| 30A | H-LP CLN | Headlight Cleaner |
| 30A | MAIN | Automatic Light Control |
| Headlight | ||
| LEXUS Link System (Mayday System) | ||
| Light Auto Turn Off System | ||
| Theft Deterrent | ||
| Wireless Door Lock Control | ||
| 30A | RAD NO. 1 | Audio System, LEXUS Navigation System, Multi Display and Parking Assist (Rear View Monitor) |
| 30A | RAD NO. 2 | Audio System, LEXUS Navigation System, Multi Display and Parking Assist (Rear View Monitor) |
| 30A | STB-AM | Active Stabilizer Suspension System |
| 40A | VGRS | VGRS System |
| 50A | DEFOG | Rear Window Defogger |
| 50A | HEATER | Air Conditioning |
| 60A | OIL PMP | Hybrid System and Shift Control System |
| 60A | RAD FAN | Cooling Fan |
| 80A | EPS | EPS |
| 80A | LH J/B-AM | Climate Control Seat |
| Illumination | ||
| Seat Heater | ||
| 80A | RR J/B | Rear Sunshade |
| 140A | DC/DC | Hybrid System and Shift Control System |
