Inner Circuit - Unit D

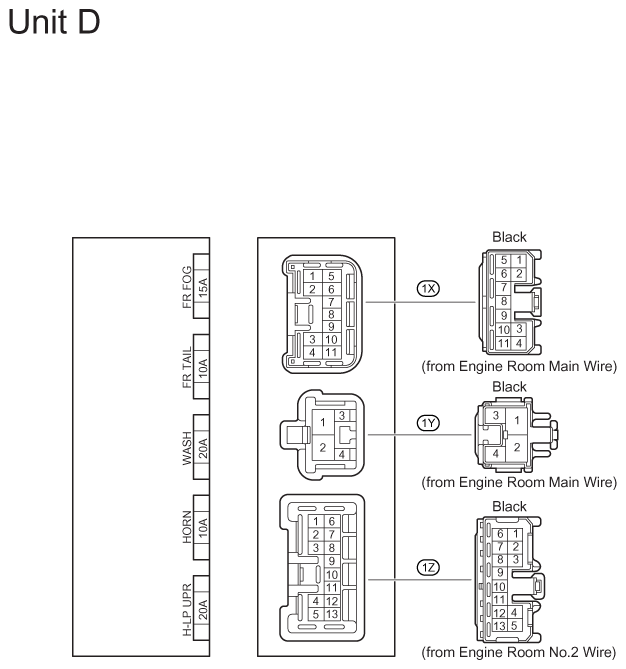

Fig 1: Engine Room R/B And J/B No. 1 Fuse Identification (Unit D)
G07613686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Engine Room R/B And J/B No. 1 Fuse Identification Legend

See:ENGINE ROOM R/B AND J/B NO. 1 FUSE & Relay Identification Legend
