DTC C1595/55 Lost Communication with Steering Angle Sensor Module; DTC C15C4/68 Steering Angle Signal (Test Mode DTC): Wiring Diagram

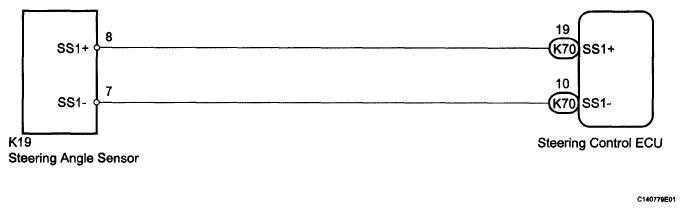

Fig 1: Steering Angle Signal - Wiring Diagram
G05816632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
