Oil Pump: Components

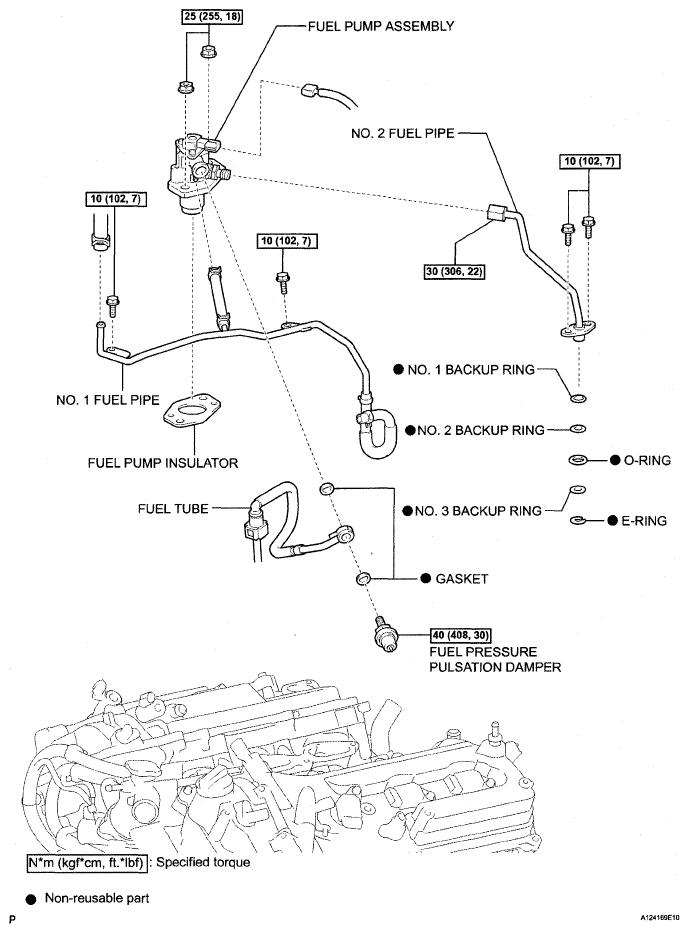

Fig 1: Identifying Oil Pump Replacement Components With Torque Specification (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

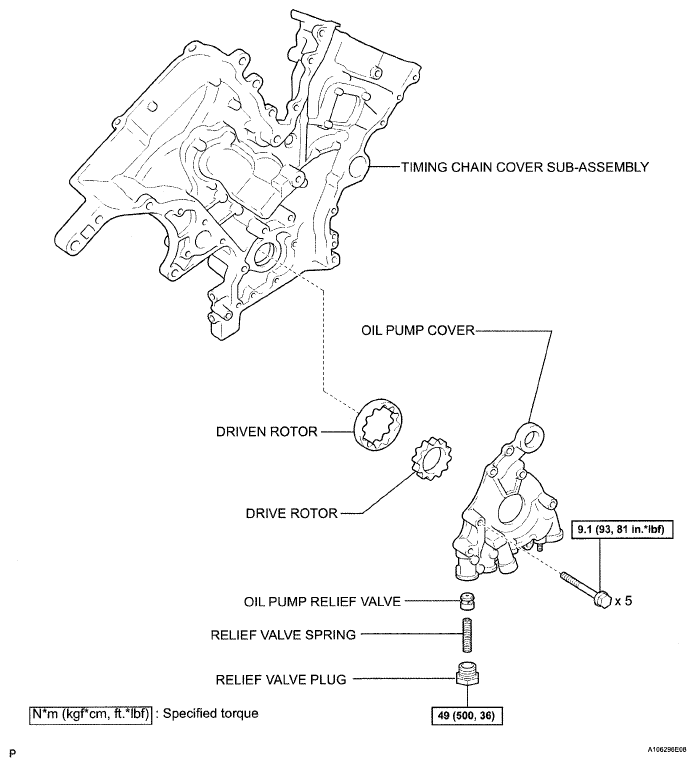

Fig 2: Identifying Oil Pump Replacement Components With Torque Specification (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

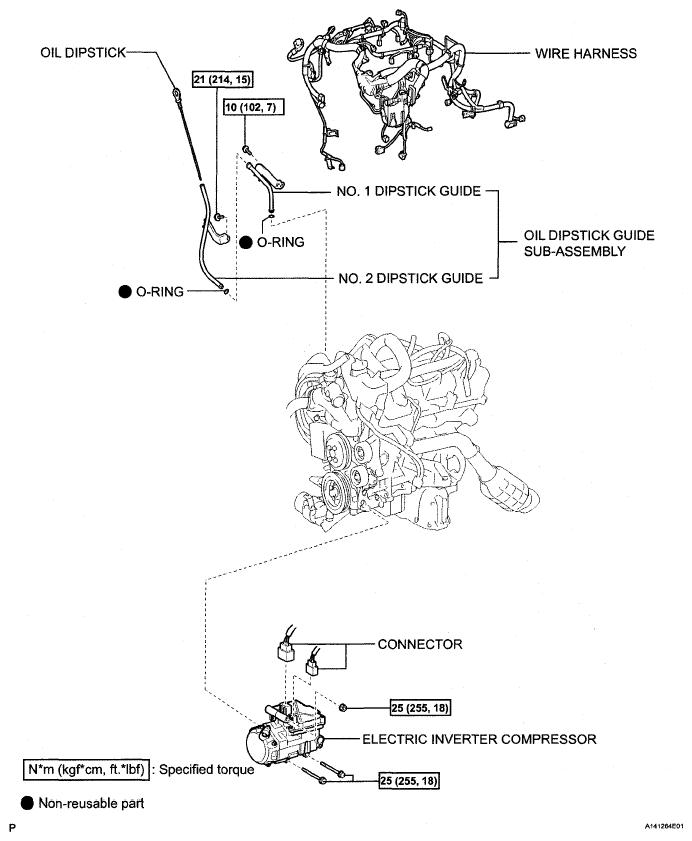

Fig 3: Identifying Oil Pump Replacement Components With Torque Specification (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

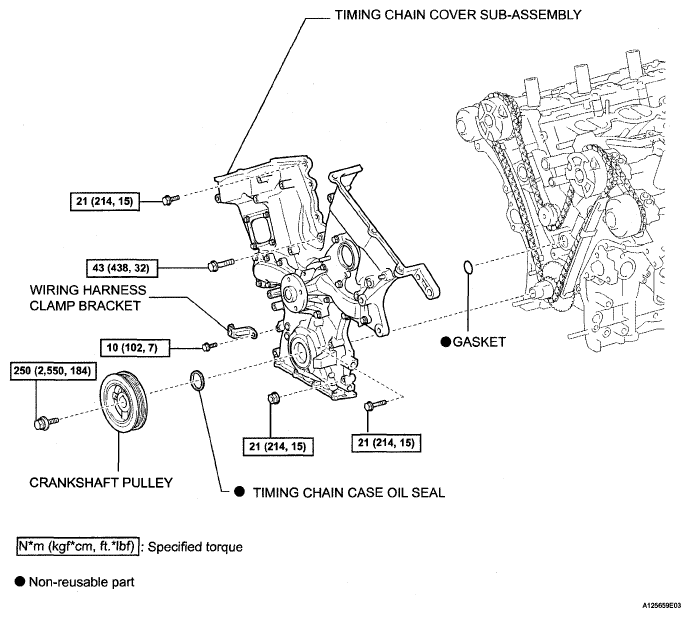

Fig 4: Identifying Oil Pump Replacement Components With Torque Specification (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

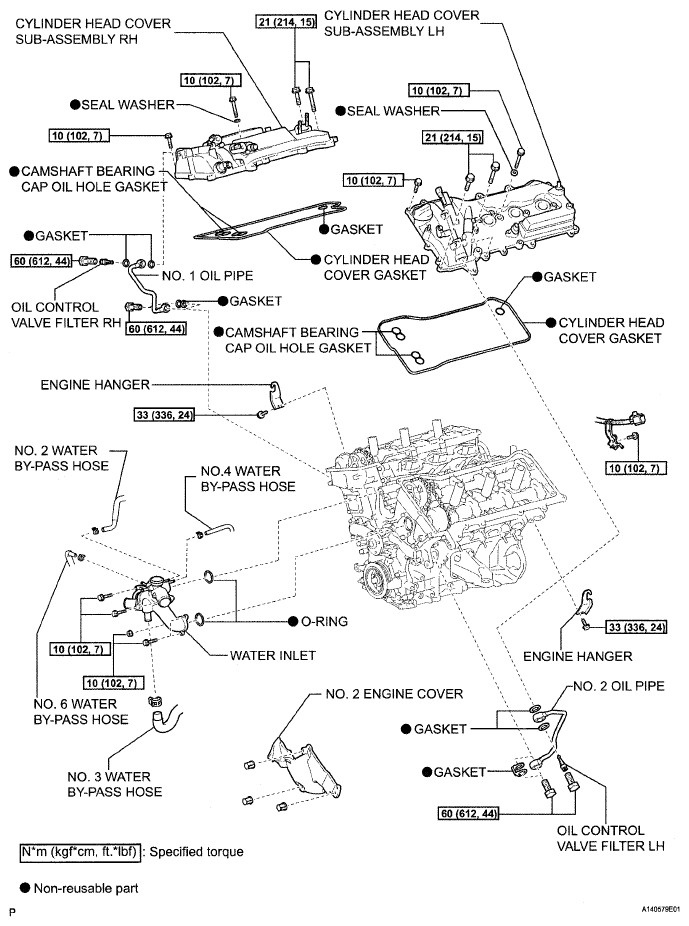

Fig 5: Identifying Oil Pump Replacement Components With Torque Specification (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

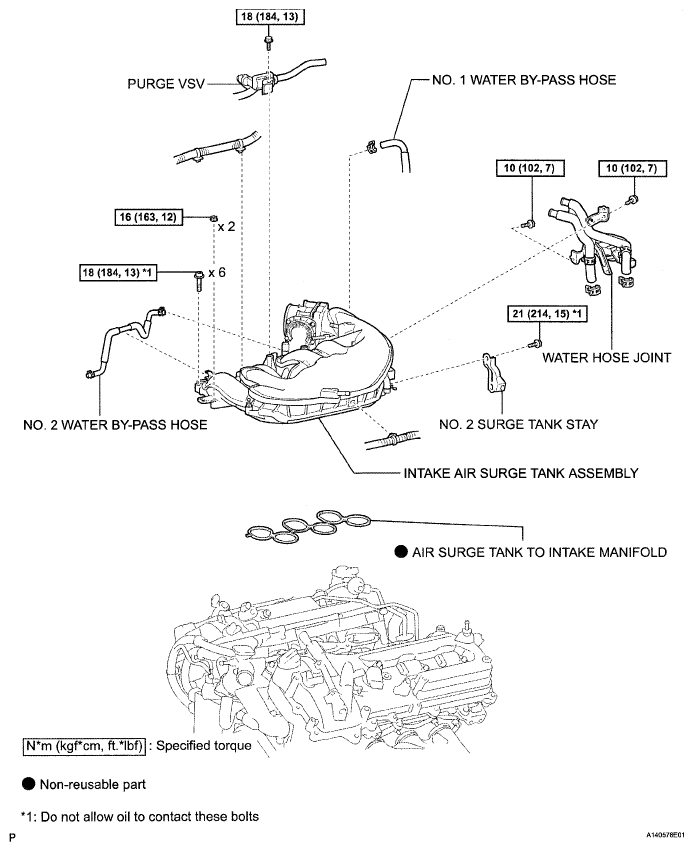

Fig 6: Identifying Oil Pump Replacement Components With Torque Specification (6 Of 8)

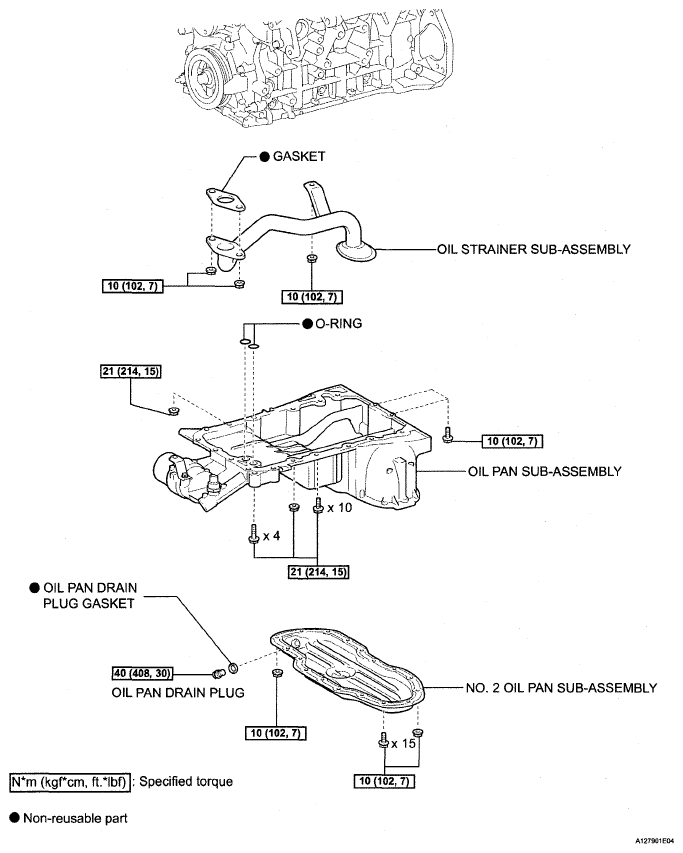

Fig 7: Identifying Oil Pump Replacement Components With Torque Specification (7 Of 8)

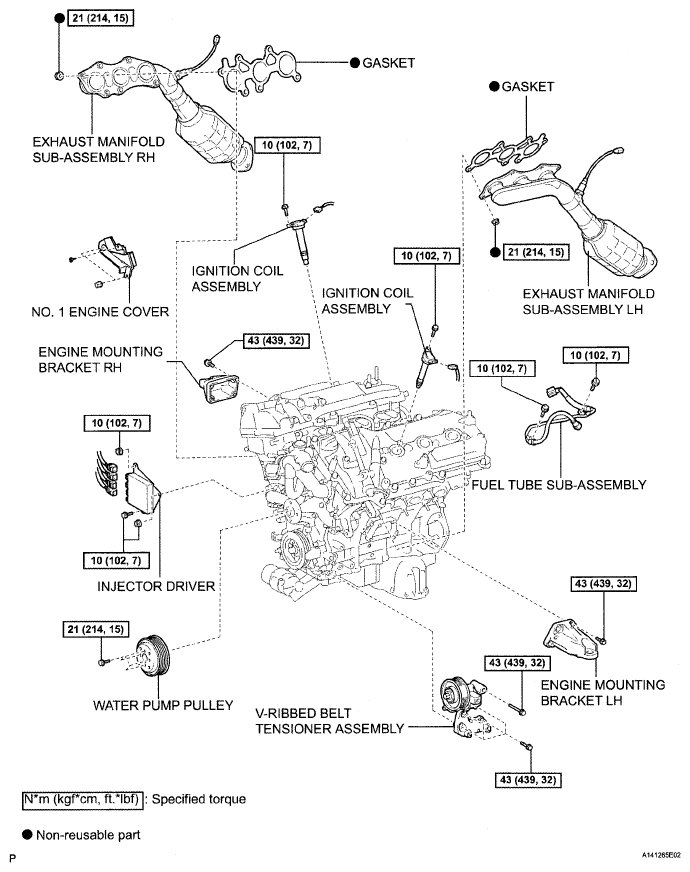

Fig 8: Oil Pump Replacement Components With Torque Specifications (8 Of 8)
