IACV Control Circuit: Wiring Diagram

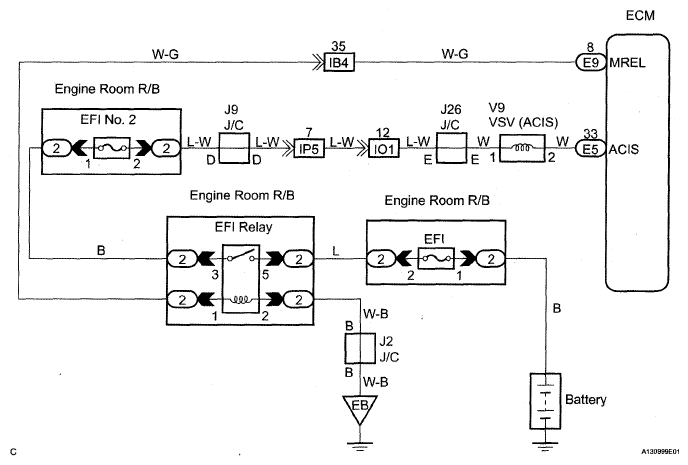

Fig 1: IACV Control Wiring Diagram
G05264299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
