DTC U0073/94 Control Module Communication Bus OFF; DTC U0100/65 Lost Communication with ECM / PCM; DTC U0123/62 Lost Communication with Yaw Rate Sensor Module; DTC U0124/95 Lost Communication with Lateral Acceleration Sensor Module; DTC U0126/63 Lost Communication with Steering Angle Sensor Module: Wiring Diagram

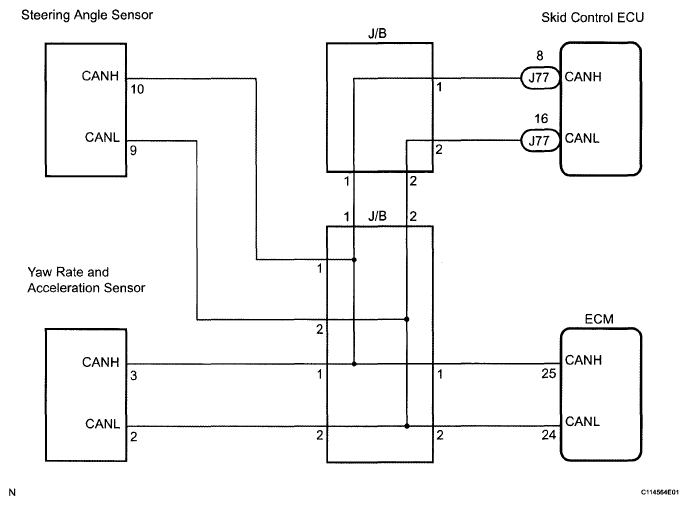

Fig 1: ECM, Steering Angle Sensor, Yaw Rate And Acceleration Sensor CAN Communication System Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
