Inspection Procedure

1. Connect Techstream to the DLC3.
2. Start the engine.
3. Select the Active Test mode on Techstream.

   ABS/VSC/TRAC:

   ACTIVE TEST REFERENCE CHART



   Item (Display)	Vehicle Condition / Test Details	Diagnostic Note
   Buzzer	Turns skid control buzzer ON / OFF	Buzzer can be heard

4. Check that the buzzer sounds/stops when turning the skid control buzzer on/off by using Techstream.

   Result

   RESULT REFERENCE CHART



   Condition	Proceed to
   Buzzer does not sound or sounds constantly	A
   Buzzer sounds/stops	B

   HINT:

   If troubleshooting has been carried out according to the Problem Symptoms Table, refer back to the table and proceed to the next step (See PROBLEM SYMPTOMS TABLE  ).

B: END

A: Go to Next Step

1. Turn the engine switch off.
2. Disconnect the skid control buzzer connector.
3. Turn the engine switch on (IG).
4. Measure the voltage according to the value (s) in the table below.

   Standard voltage

   STANDARD VOLTAGE REFERENCE CHART



   Tester Connection	Condition	Specified Condition
   J18-2 - Body ground	Engine switch on (IG)	10 to 14 V

Fig 1: Inspecting Skid Control Buzzer (Power Source Terminal)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

OK: Go to Next Step

1. Apply battery negative voltage to terminal 1, and battery positive voltage to terminal 2 of the skid control buzzer, and then check that the buzzer sounds.

   OK:

   Skid control buzzer sounds.

NG: REPLACE SKID CONTROL BUZZER

Fig 2: Inspecting Skid Control Buzzer

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to Next Step

1. Turn the engine switch off.
2. Disconnect the skid control ECU connector.
3. Measure the resistance according to the value (s) in the table below.

   Standard resistance

   STANDARD RESISTANCE REFERENCE CHART



   Tester Connection	Condition	Specified Condition
   J77-11 (BZ) - J18-1	Always	Below 1 Ω
   J77-11 (BZ) - Body ground	Always	10 kΩ or higher

   HINT:

   If troubleshooting has been carried out according to the Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part (See PROBLEM SYMPTOMS TABLE  ).

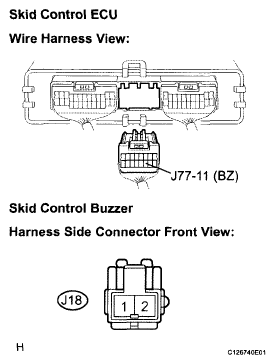

Fig 3: Checking Harness And Connector (Skid Control ECU - SKID Control Buzzer)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE SKID CONTROL ECU
