System Diagram

  1. DIRECT LINE SIGNAL

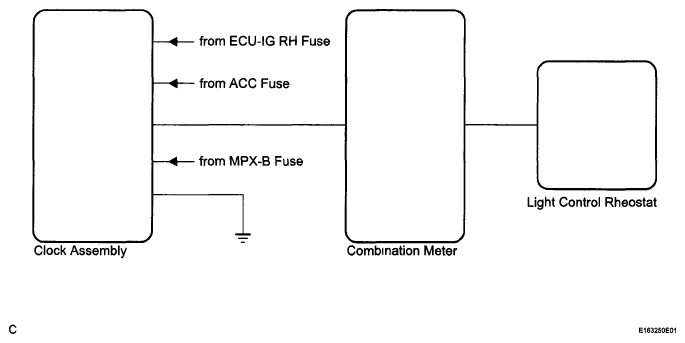

    Fig 1: Clock System - System Diagram
    G05754750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INPUT AND OUTPUT SIGNALS OF THE CLOCK ASSEMBLY
    INPUT AND OUTPUT SIGNALS OF THE CLOCK ASSEMBLY

    Communication Signal Sender Receiver Communication Line
    Illumination Combination Meter Clock Assembly Direct Line
