MIL Circuit: Wiring Diagram

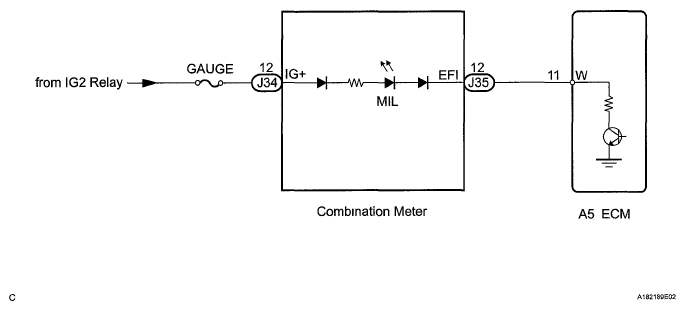

Fig 1: MIL Circuit - Wiring Diagram
G05751839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
