Display and Navigation Assembly Communication Stop Mode: Wiring Diagram

HINT:

For vehicles with multi-display only.

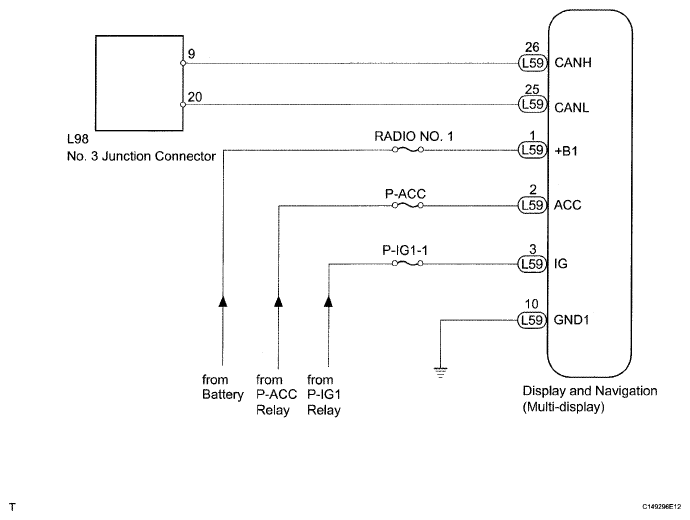

Fig 1: Display And Navigation Assembly Communication Stop Mode - Wiring Diagram
G04953647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
