Integration Control and Panel Assembly Communication Stop Mode: Wiring Diagram

HINT:

For vehicles without multi-display only.

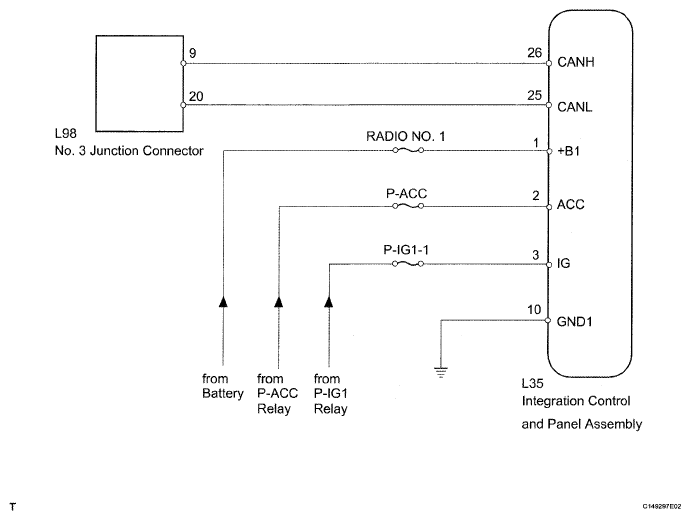

Fig 1: Integration Control And Panel Assembly Communication Stop Mode - Wiring Diagram
G04953650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
