Confirmation Driving Pattern

HINT

Performing this confirmation pattern will activate the catalyst monitor This is very useful for verifying the completion of a repair.

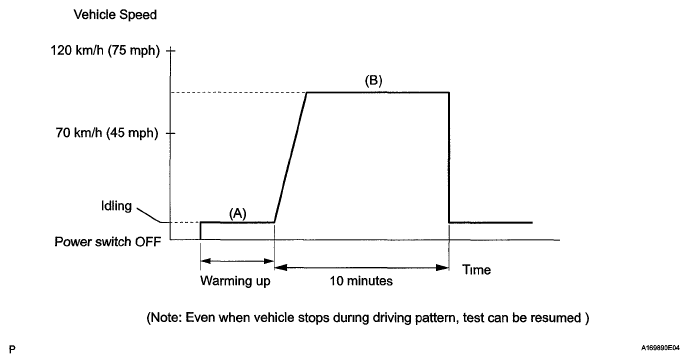

Fig 1: Driving Pattern Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the intelligent tester or Techstream to the DLC3.
2. Turn the power switch ON (IG).
3. Turn the tester ON.
4. Clear DTCs (if set) (see DTC CHECK/CLEAR ).
5. Enter the following menus:
   • Intelligent Tester - Select: DIAGNOSIS / CARB OBD II / READINESS TESTS.
   • Techstream - Select: Powertrain / Engine and ECT / Monitor.
6. Check that CAT EVAL*1 (Catalyst / Status2)*2 is INCMPL*1 (Incomplete)*2.
7. Turn the power switch ON (READY).
8. Warm up the engine. (Procedure "A")
9. Drive the vehicle at between 70 km/h and 120 km/h (45 mph and 75 mph) for at least 10 minutes. (Procedure "B")
10. Those items will change to COMPL*1 (Complete)*2 as CAT EVAL*1 (Catalyst)*2 monitor operates.
11. On the tester, enter the following menus:
    • Intelligent tester - Select. DIAGNOSIS / ENHANCED OBD II / DTC INFO / PENDING CODES; then check if any DTCs (any pending DTCs) are set.
    • Techstream - Select: Powertrain / Engine and ECT / Trouble Codes / Pending; then check if any DTCs (any pending DTCs) are set.

HINT:

• If CAT EVAL*1 (Catalyst)*2 does not change to COMPL*1 (Complete)*2, and any pending DTCs fail to set, extend the driving time.
• *1: Intelligent tester
• *2: Techstream
