Inspection Procedure

HINT:

Operating the engine switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   1. Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and the branch wire.
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
   NOTE:

   • w/ Navigation System:

     After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

   • When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
2. CHECK FOR OPEN IN CAN BUS WIRE (MAIN BODY ECU BRANCH WIRE)
   1. Disconnect the E3 main body ECU (cowl side junction block LH) connector.
   2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Switch Condition	Specified Condition
   E3-5 (CANH) - E3-6 (CANL)	Engine switch off	54 to 69 Ω

   NG: REPAIR OR REPLACE MAIN BODY ECU BRANCH WIRE OR CONNECTOR (COWL SIDE JUNCTION BLOCK) (CANH, CANL)

   Fig 1: Identifying E3 Main Body ECU Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: Go to next step

3. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - BATTERY AND BODY GROUND)
   1. Connect the cable to the negative (-) battery terminal.
      NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).

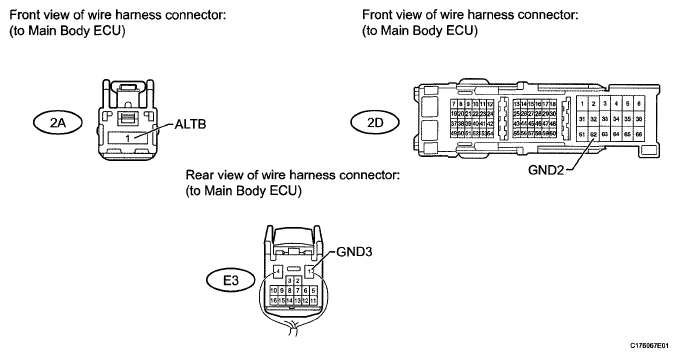

      Fig 2: Identifying 2A, 2D & E3 Main Body ECU Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disconnect the 2A and 2D main body ECU (cowl side junction block LH) connectors.
   3. Disconnect the E3 main body ECU (cowl side junction block LH) connector.
   4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART



      Tester Connection	Condition	Specified Condition
      2D-62 (GND2) - Body ground	Always	Below 1 Ω
      E3-1 (GND3) - Body ground	Always	Below 1 Ω

   5. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Condition	Specified Condition
   2A-1 (ALTB) - Body ground	Always	11 to 14 V

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: REPLACE MAIN BODY ECU (COWL SIDE JUNCTION BLOCK LH)
