EVAP System: Wiring Diagram

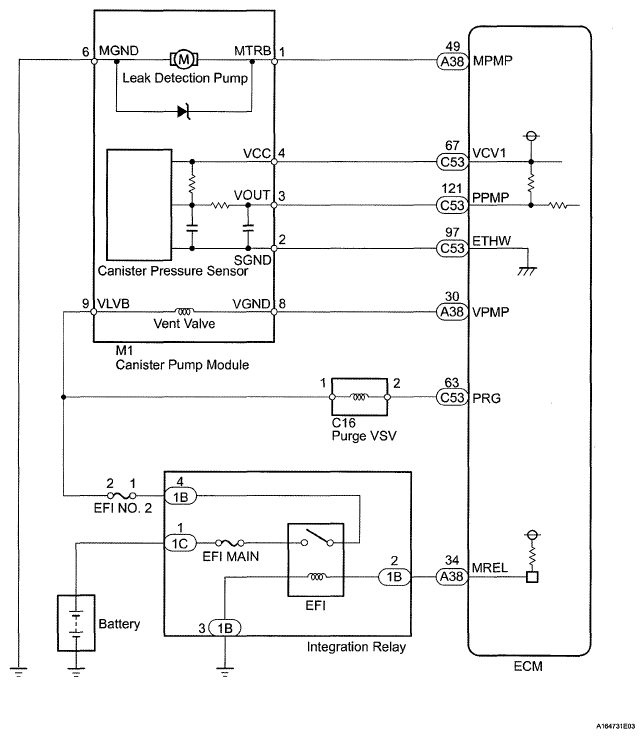

Fig 1: Evaporative Emission Control System - Wiring Diagram
G05628012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
