System Diagram

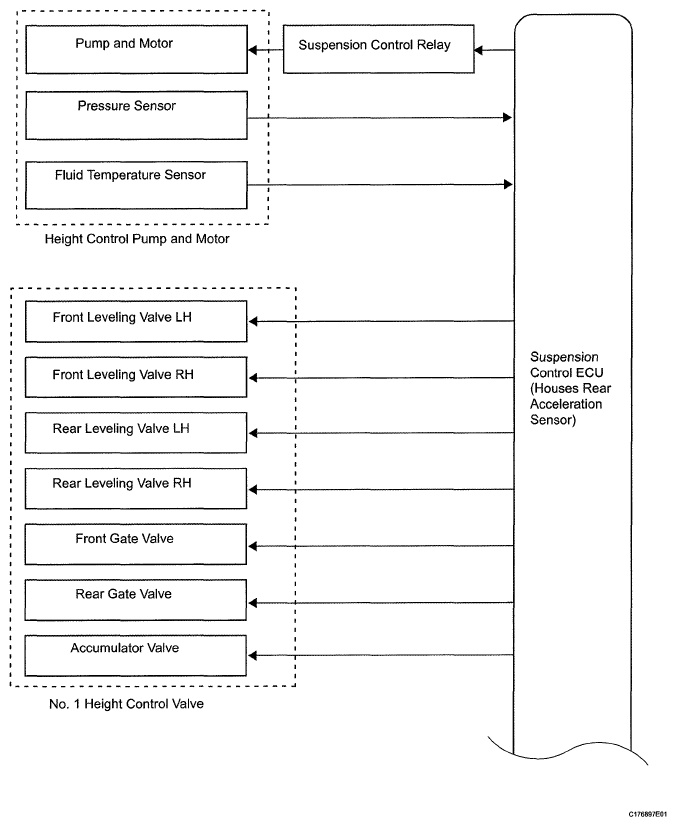

Fig 1: Active Height Control Suspension System Diagram (1 Of 4)
G05761276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

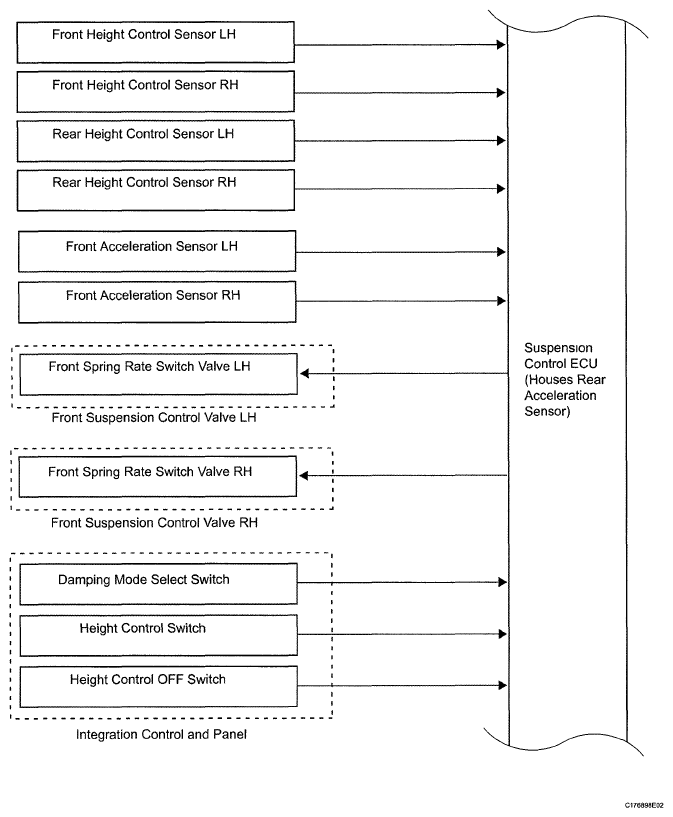

Fig 2: Active Height Control Suspension System Diagram (2 Of 4)
G05761277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

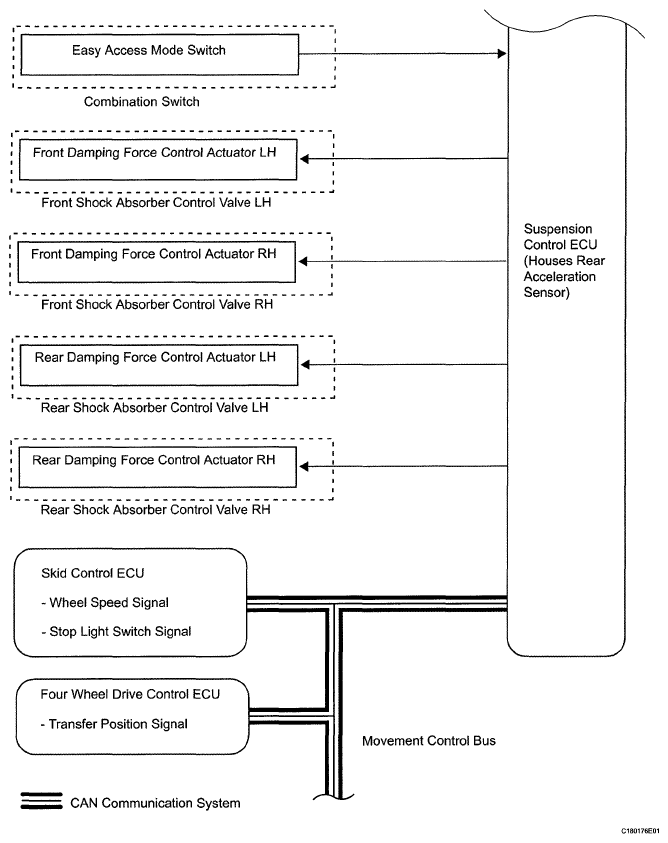

Fig 3: Active Height Control Suspension System Diagram (3 Of 4)
G05761278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

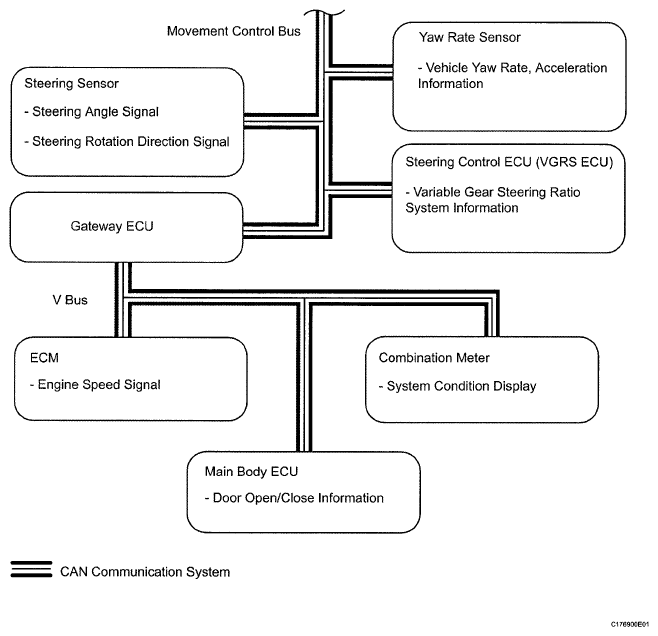

Fig 4: Active Height Control Suspension System Diagram (4 Of 4)
G05761279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
