Multiplex Communication System (J/B ECU) Part 15

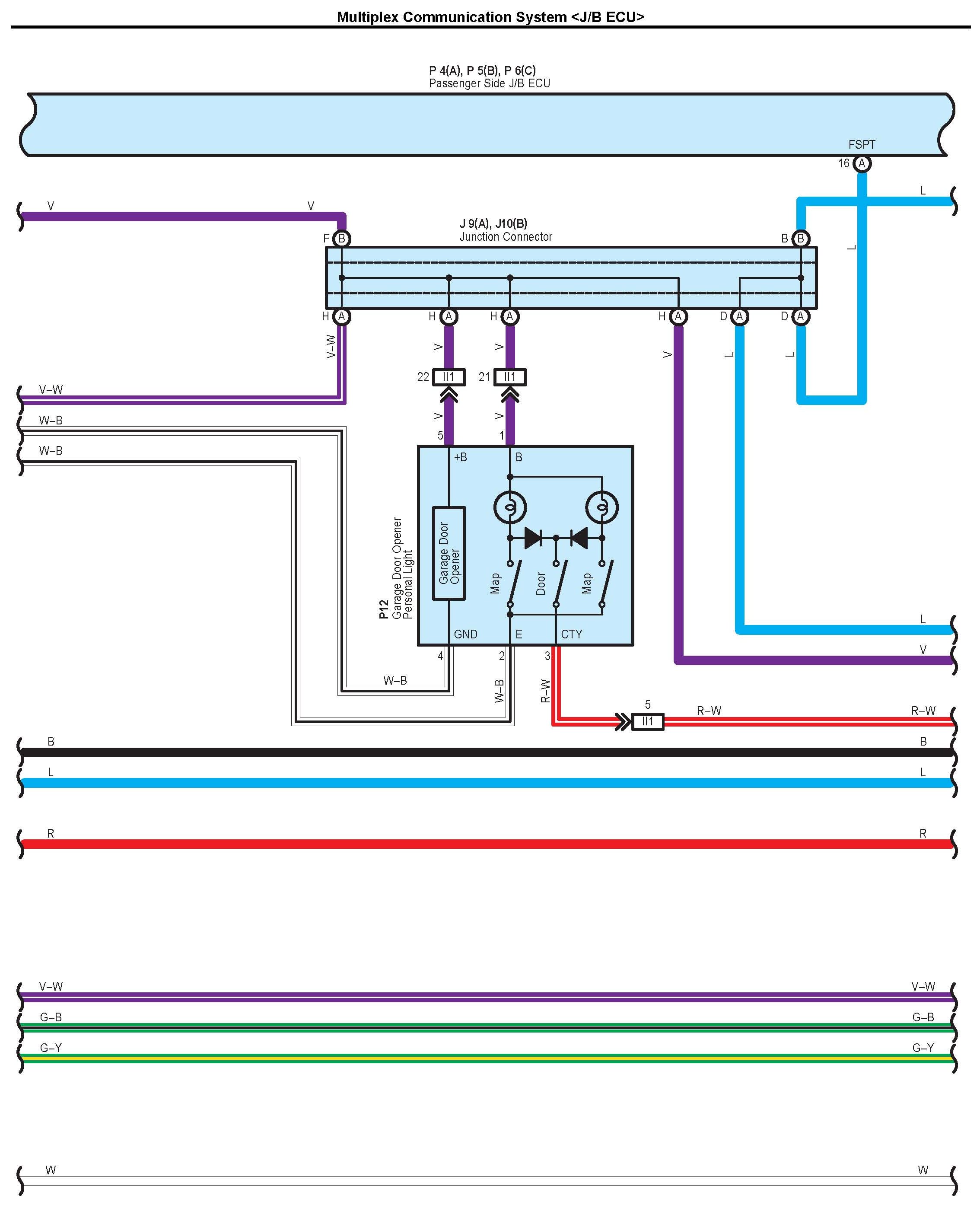

Multiplex Communication System <J/B ECU> Part 15:

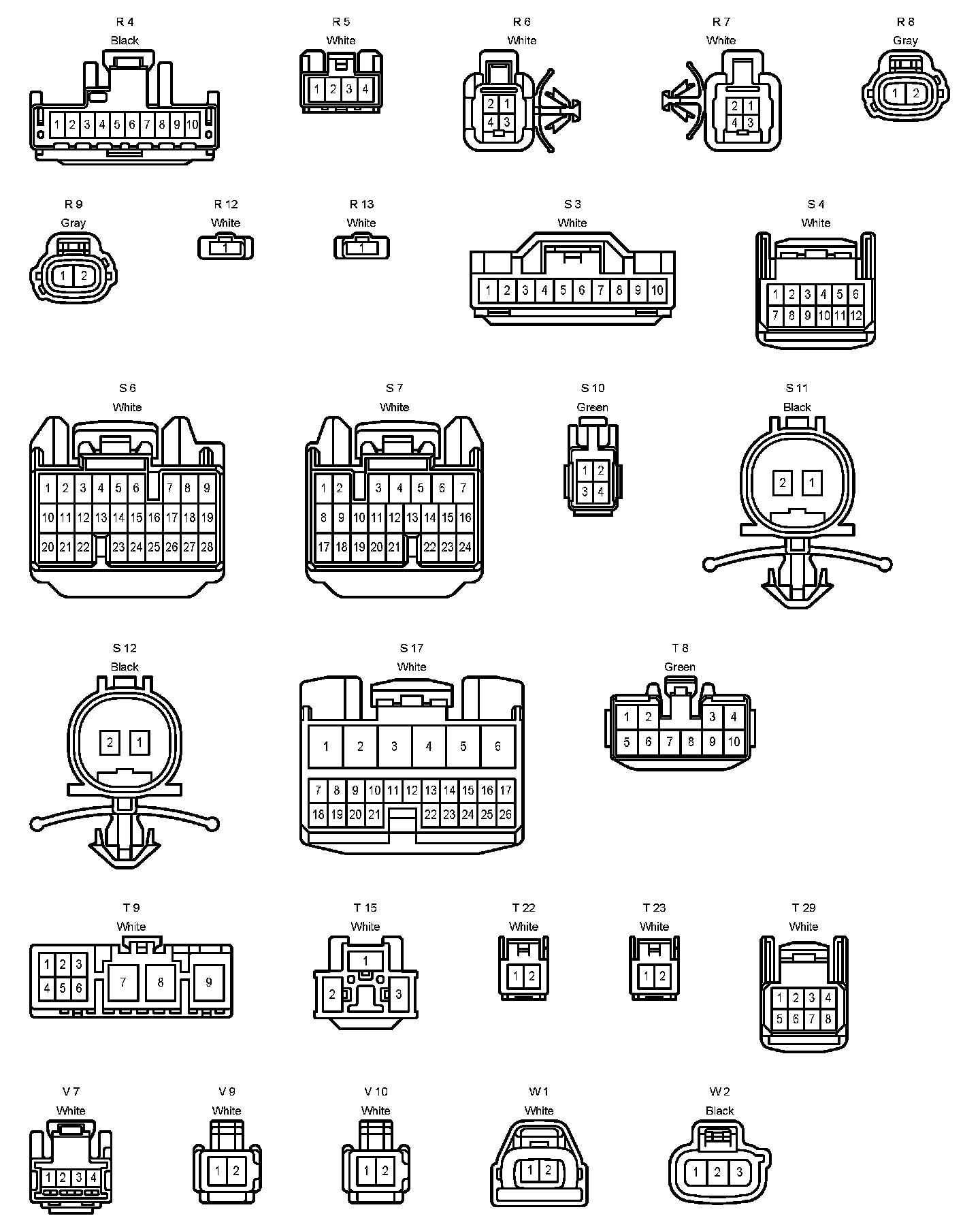

Connector Pin Outs Part 1:

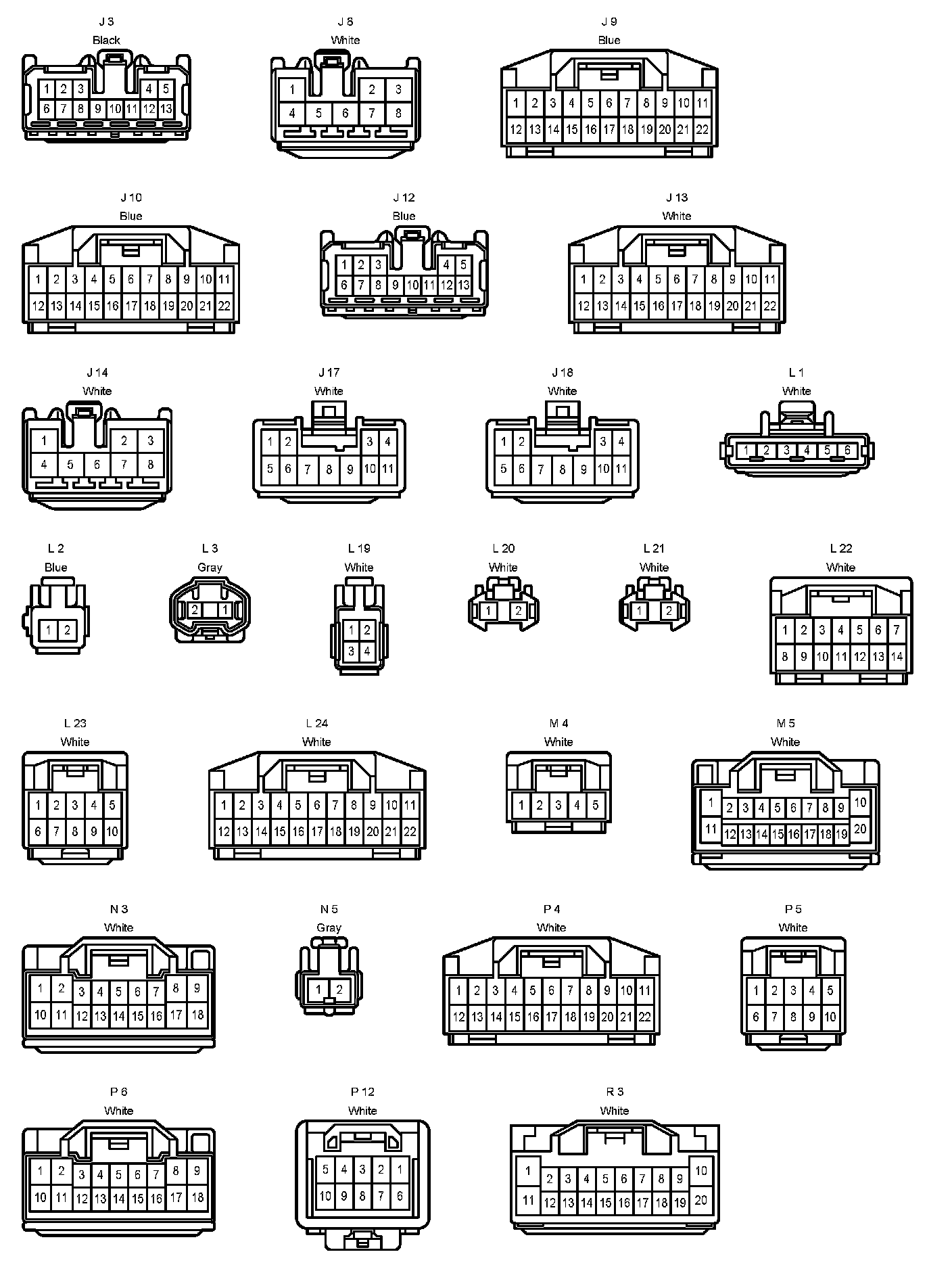

Connector Pin Outs Part 2:

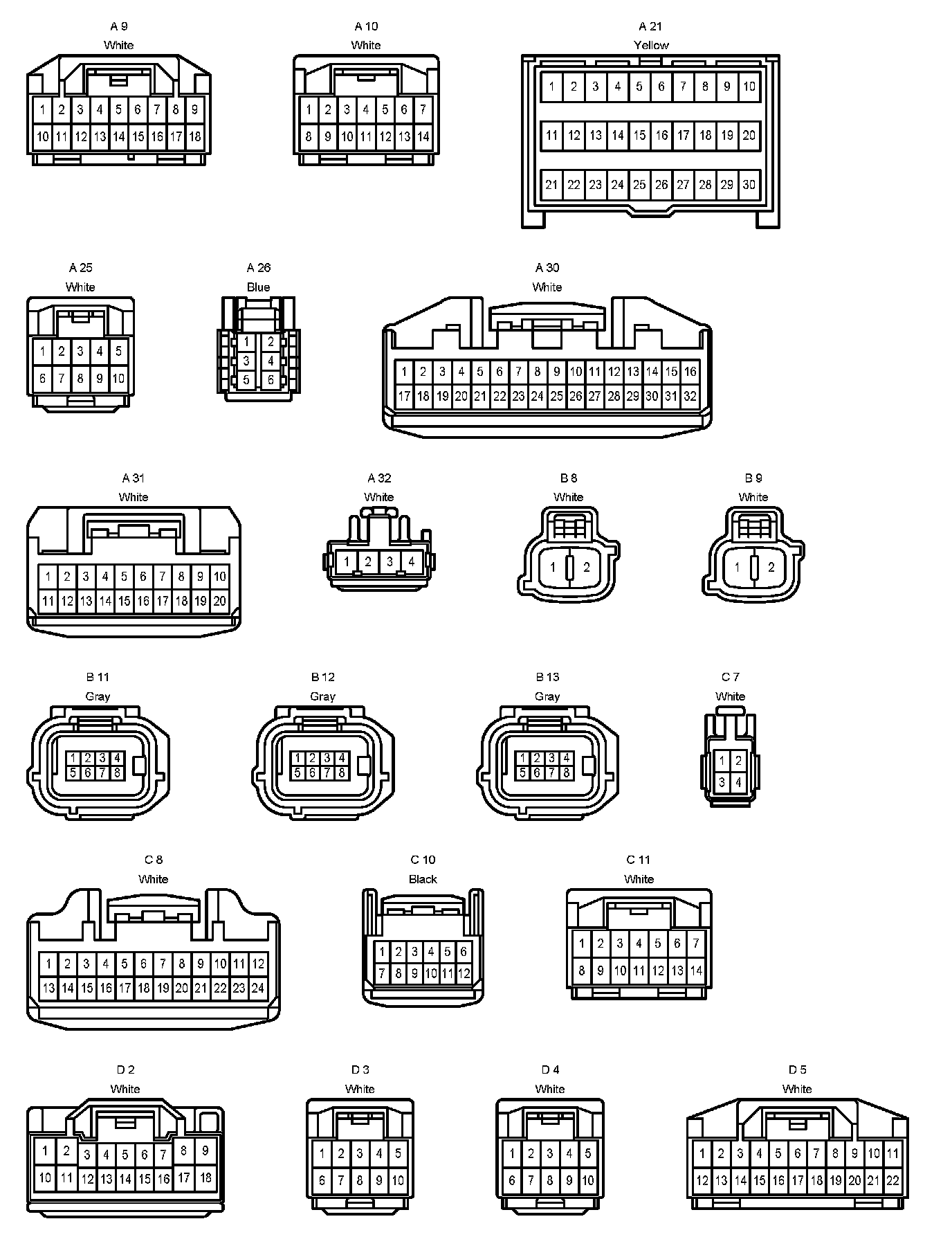

Connector Pin Outs Part 3:

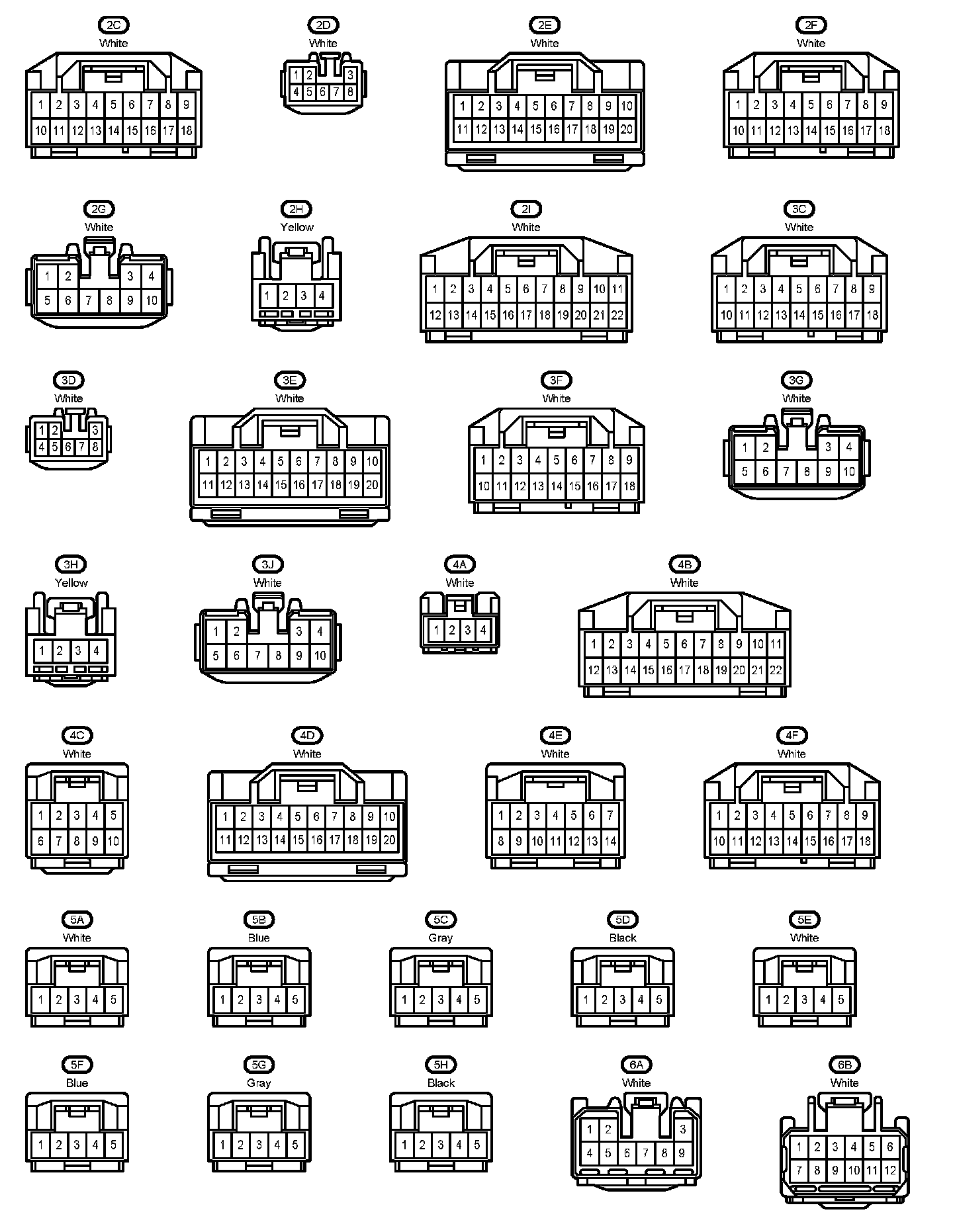

Connector Pin Outs Part 4:

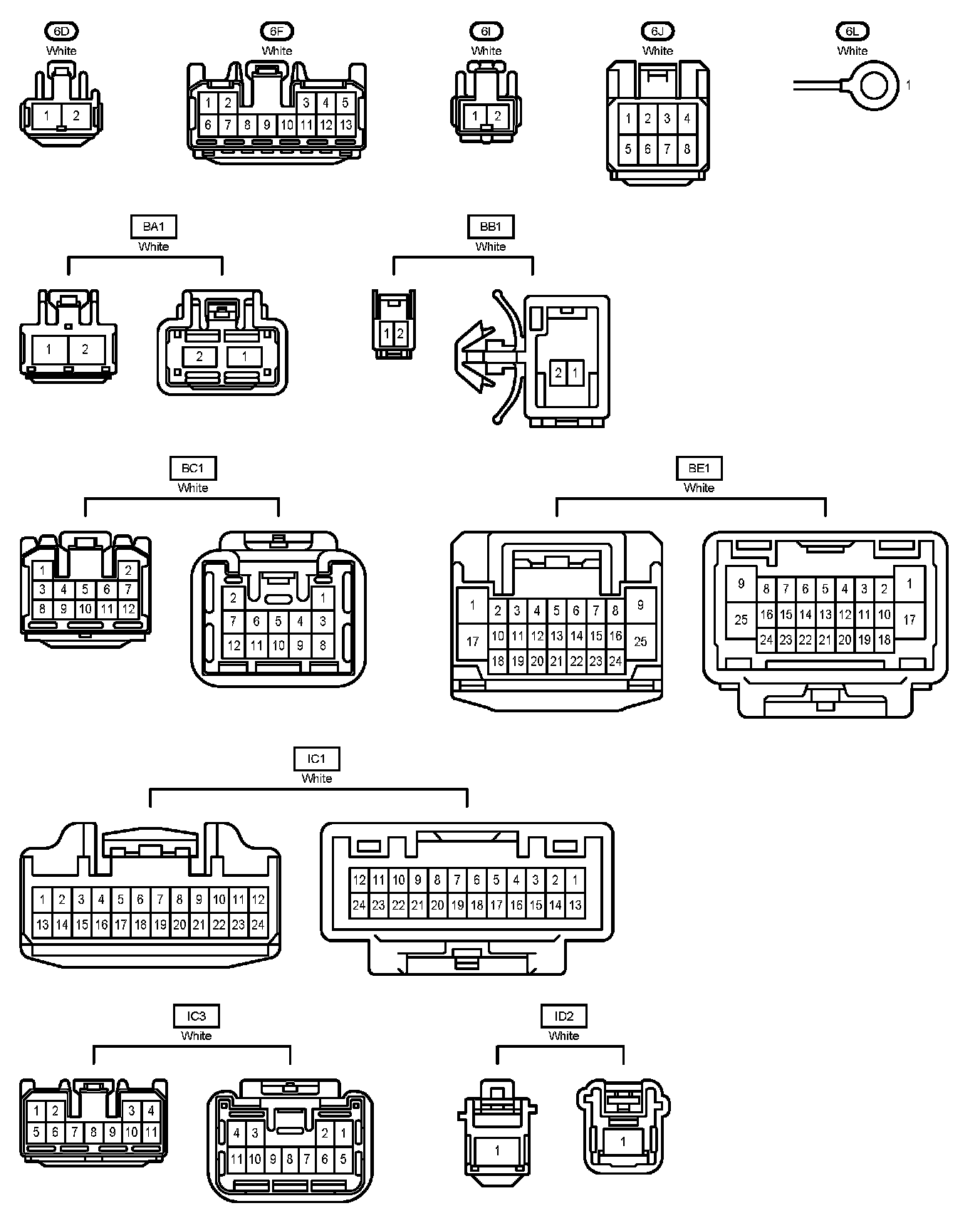

Connector Pin Outs Part 5:

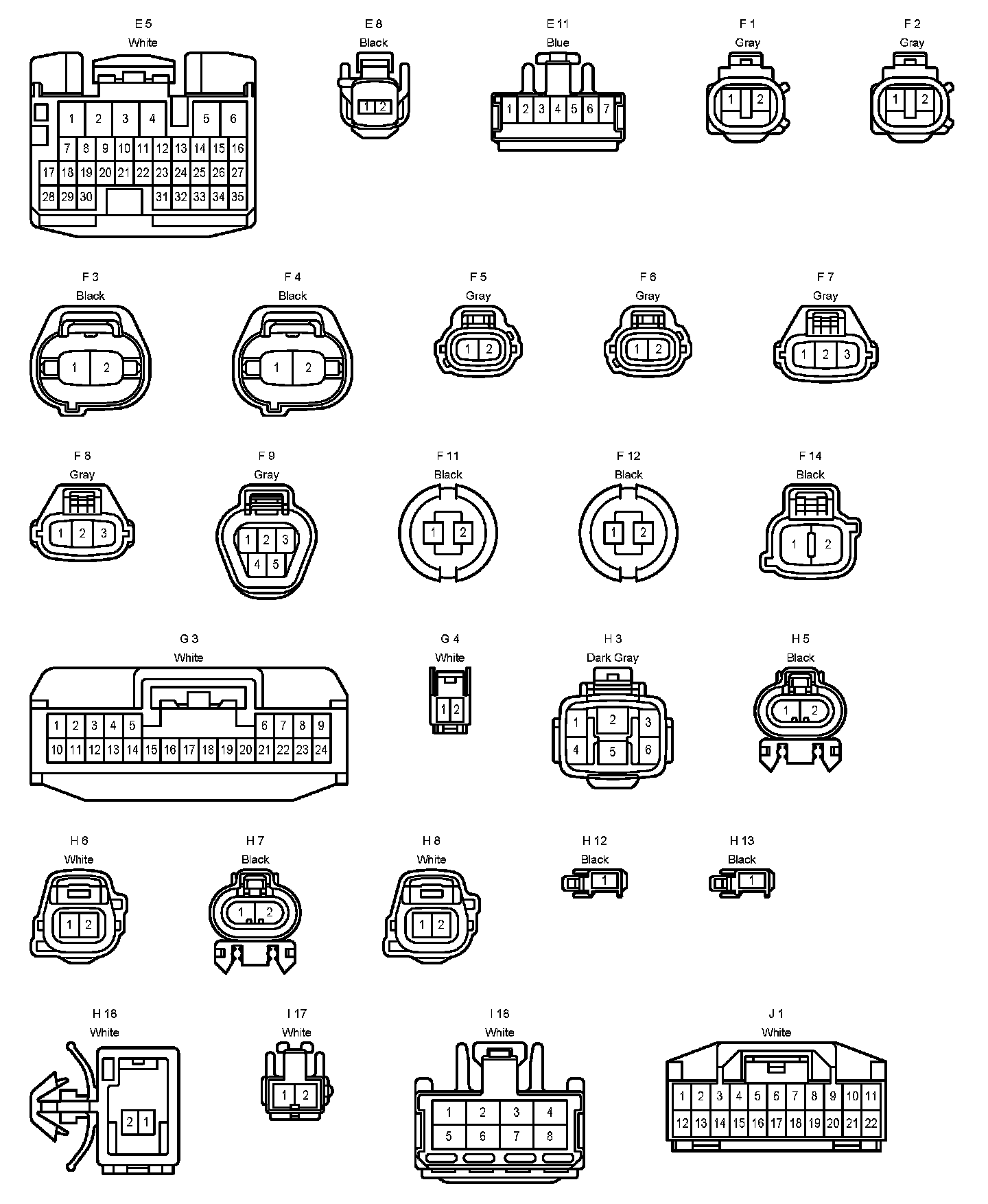

Connector Pin Outs Part 6:




Connector Pin Outs Part 7:






Next Diagram Multiplex Communication System (J/B ECU) Part 16

Previous Diagram Multiplex Communication System (J/B ECU) Part 14

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
