DTC P0121 Throttle / Pedal Position Sensor / Switch "A" Circuit Range / Performance Problem: Wiring Diagram

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

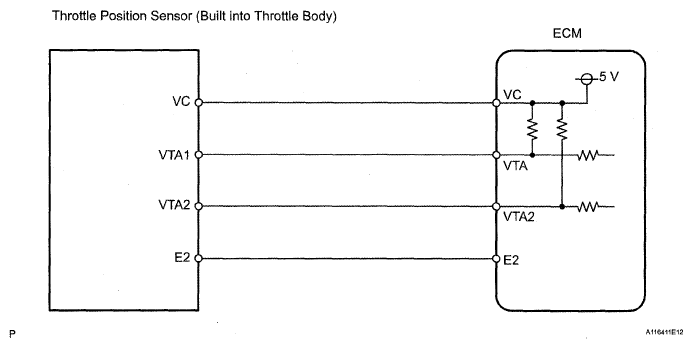

Fig 1: Throttle Position Sensor Circuit - Wiring Diagram
G05291337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
